G9EJ Series

Part	Must Release Voltage	Form A Count	Contact Form	Mounting Type	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage DC (Max)	Quick Connect Size (0.250")	Termination Style	Operate Time	Release Time	Coil Current	Coil Type	Must Operate Voltage	Contact Rating (Current)	Coil Power	Coil Resistance
Omron Electronics Inc-EMC Div G9EJ-1-E-UVD DC12	0.6 VAC	1	SPST-NO	Chassis Mount	12 VAC	-40 °C	70 °C	400 VDC	0.25 in	Plug In Quick Connect	50 ms	30 ms	100 mA	Non Latching	7.2 VDC	15 A	1.2 W	120 Ohms

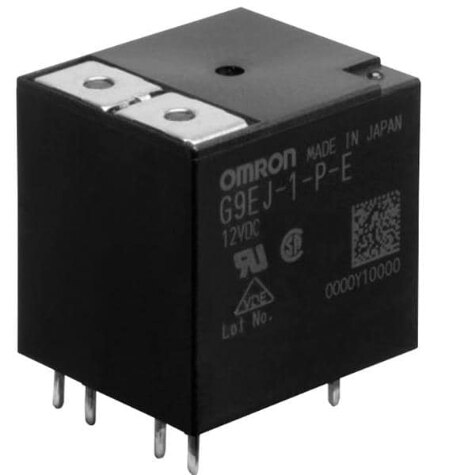

Omron Electronics Inc-EMC Div G9EJ-1-P-E-UVD DC24	1.2 V	1	SPST-NO	Through Hole	24 VDC	-40 °C	70 °C	400 VDC		PC Pin	50 ms	30 ms	50 mA	Non Latching	14.4 VDC	15 A
Omron Electronics Inc-EMC Div G9EJ-1-E-UVD DC24	1.2 V	1	SPST-NO	Chassis Mount	24 VDC	-40 °C	70 °C	400 VDC	0.25 in	Plug In Quick Connect	50 ms	30 ms	50 mA	Non Latching	14.4 VDC	15 A	1.2 W	480 Ohms

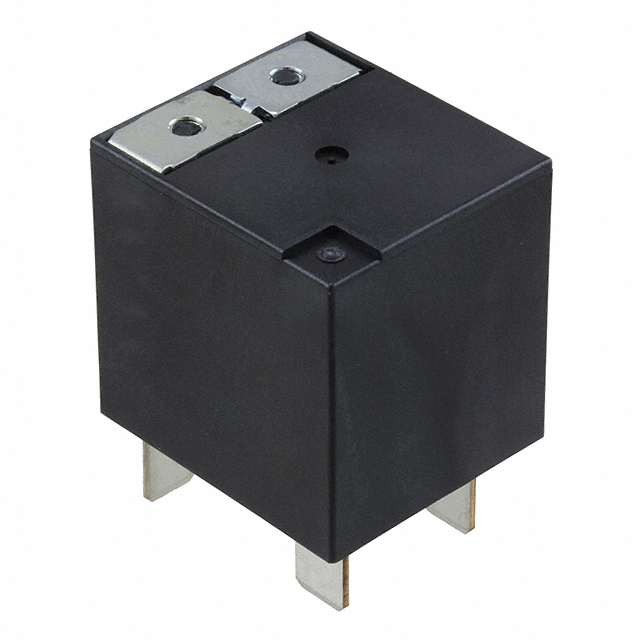

Omron Electronics Inc-EMC Div G9EJ-1-DC12	0.6 VAC	1	SPST-NO		12 VAC	-40 °C	85 °C	400 VDC	0.25 in	Plug In Quick Connect	50 ms	30 ms	167 mA	Non Latching	7.2 VDC	25 A	2 VA	72 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
