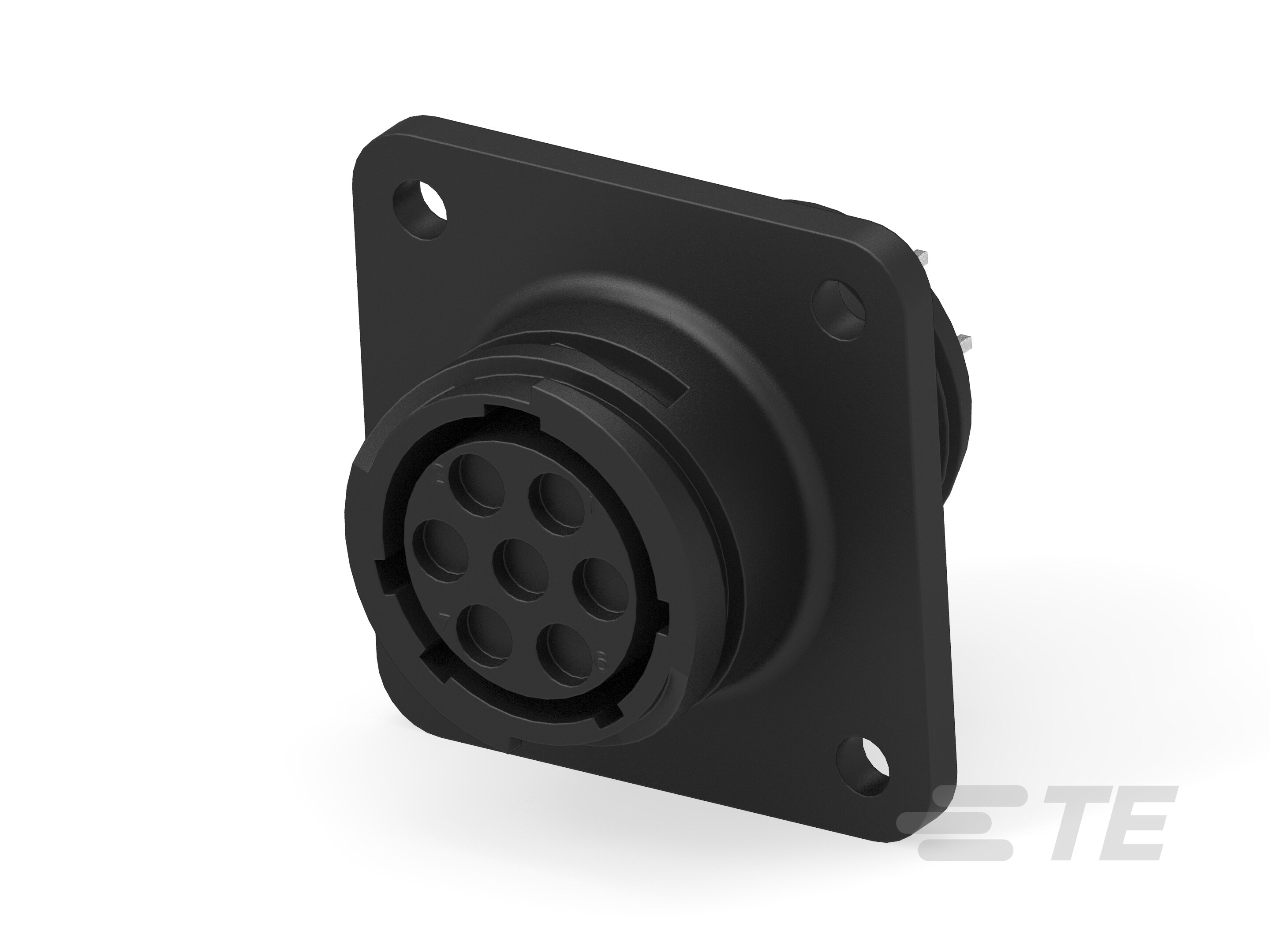

Specification	1986377-1

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Current Rating	13 A
Fastening Type	Threaded
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount, Through Hole
Number of Positions	7
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	A
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert Length	13 mm
Shell Size - Insert Width	7 mm
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 V
Voltage Rating (Type)	DC

Circular Plastic Connectors Series 1 Series

...

Part	Termination	Number of Positions	Contact Finish - Mating	Connector Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Mounting Type	Shell Material	Orientation	Shielding	Material Flammability Rating	Mounting Feature	Fastening Type	Color	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Primary Material	Contact Material	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 3-206934-1	Solder	37 pos	Gold	Male Pins Receptacle	23	37
TE Connectivity AMP Connectors 206934-9	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A	Unshielded	UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass
TE Connectivity AMP Connectors 1-206934-3	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A	Unshielded	UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass
TE Connectivity AMP Connectors 206934-5	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A		UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass	30 µin
TE Connectivity AMP Connectors 206934-7	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A		UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass	30 µin
TE Connectivity AMP Connectors 2-206934-7
