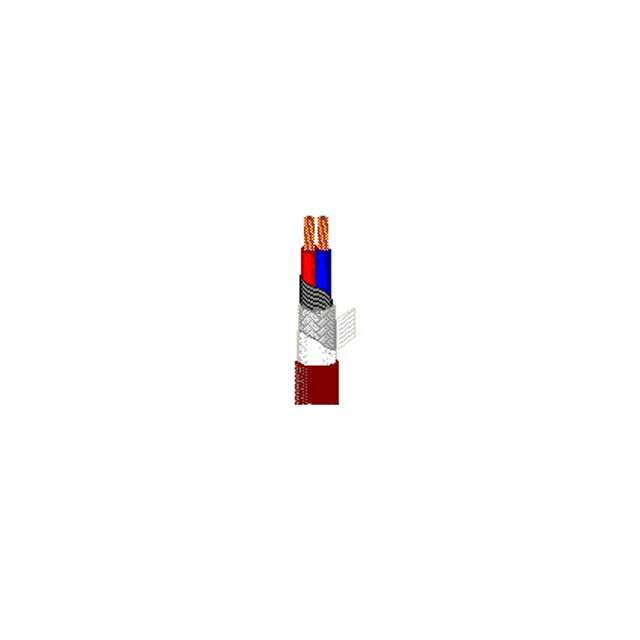

9399 001500

Active

Belden Inc.

2 #24 EPDM BRD EPDM

Search across all available documentation for this part.

Active

Belden Inc.

2 #24 EPDM BRD EPDM

Technical Specifications

Parameters and characteristics for this part

Specification	9399 001500

Cable Type	Microphone
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper Alloy, Bare
Conductor Strand [custom]	40 AWG
Conductor Strand [custom]	45
Jacket (Insulation) Diameter [diameter]	0.2 in
Jacket (Insulation) Diameter [diameter]	5.08 mm
Jacket (Insulation) Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Brown
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 65 %
Shield Material	Textile, Copper, Tinned
Shield Type	Foil, Braid
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

Part	Number of Conductors	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Usage	Shield Type	Conductor Material	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Shield Coverage	Cable Type
Belden Inc. 9399 001500	2	24 AWG	0.02 in	0.508 mm	500 '	152.4 m	40 AWG	45	300 V	Audio	Braid Foil	Copper Alloy Bare	Copper Tinned Textile	0.2 in	5.08 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 °C	Brown	65 % 100 %	Microphone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Microphone Cable Brown 24 AWG Foil, Braid 500.0' (152.4m)
