8333 060100

Active

Belden Inc.

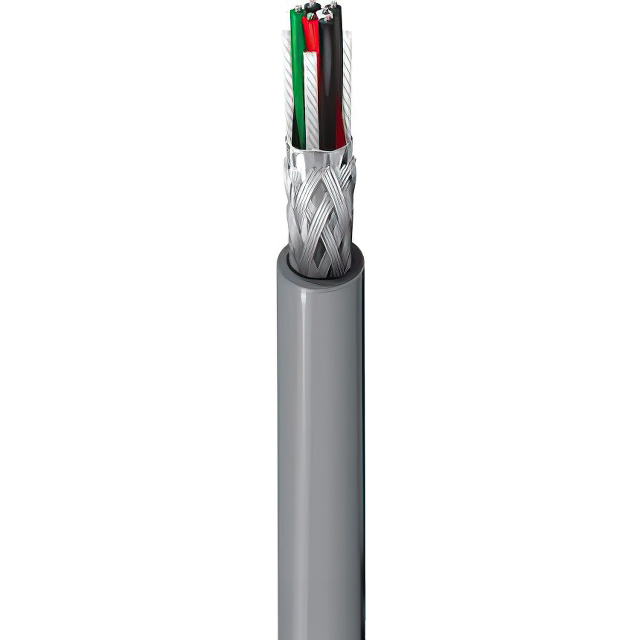

MULTI-PAIR 6COND 24AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8333 060100

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Shield Type	Shield Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Usage	Shield Coverage	Wire Gauge	Jacket (Insulation) Material	Cable Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Voltage
Belden Inc. 8333 060100	Braid Foil	Aluminum Copper Tinned	Copper Tinned	0.889 mm	0.035 in	30.5 m	100 ft	Chrome	32 AWG	7	Poly-Vinyl Chloride (PVC)	Computer	65 % 100 %	24 AWG	Poly-Vinyl Chloride (PVC)	Multi-Pair	6	-30 ░C	80 C	6.73 mm	0.265 in	UL Style 2464
Belden Inc. 8333 060500	Braid Foil	Aluminum Copper Tinned	Copper Tinned	0.889 mm	0.035 in	152.4 m	500 '	Chrome	32 AWG	7	Poly-Vinyl Chloride (PVC)	Computer	65 % 100 %	24 AWG	Poly-Vinyl Chloride (PVC)	Multi-Pair	6	-30 ░C	80 C	6.73 mm	0.265 in	UL Style 2464	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (3 Pair) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
