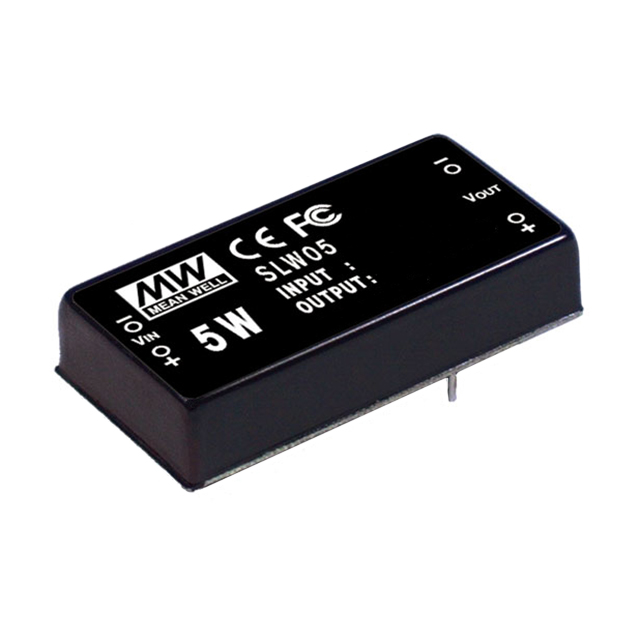

SLW05 Series

Part	Voltage - Output 1	Applications	Voltage - Input (Min)	Power (Watts)	Voltage - Isolation	Mounting Type	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Package / Case	Current - Output (Max)	Features	Efficiency	Type	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Max)
MEAN WELL USA Inc. SLW05C-15	15 V	ITE (Commercial)	36 V	5 W	1000 Vrms	Through Hole	0.44 in	1 in	2 in	5-DIP Module	333 mA	OCP SCP	85 %	Isolated Module	1	-25 °C	71 °C	72 V
MEAN WELL USA Inc. SLW05B-09	9 V	ITE (Commercial)	18 V	5 W	1000 Vrms	Through Hole	0.44 in	1 in	2 in	5-DIP Module	556 mA	OCP SCP	80 %	Isolated Module	1	-25 °C	71 °C	36 V
MEAN WELL USA Inc. SLW05A-09	9 V	ITE (Commercial)	9 V	5 W	1000 Vrms	Through Hole	0.44 in	1 in	2 in	5-DIP Module	556 mA	OCP SCP	80 %	Isolated Module	1	-25 °C	71 °C	18 V
MEAN WELL USA Inc. SLW05C-05	5 V	ITE (Commercial)	36 V	5 W	1000 Vrms	Through Hole	0.44 in	1 in	2 in	5-DIP Module	1 A	OCP SCP	77 %	Isolated Module	1	-25 °C	71 °C	72 V
MEAN WELL USA Inc. SLW05A-15	15 V	ITE (Commercial)	9 V	5 W	1000 Vrms	Through Hole	0.44 in	1 in	2 in	5-DIP Module	333 mA	OCP SCP	81 %	Isolated Module	1	-25 °C	71 °C	18 V
MEAN WELL USA Inc. SLW05B-05	5 V	ITE (Commercial)	18 V	5 W	1000 Vrms	Through Hole	0.44 in	1 in	2 in	5-DIP Module	1 A	OCP SCP	77 %	Isolated Module	1	-25 °C	71 °C	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
