845-104-556-208
ActiveEDAC Inc.

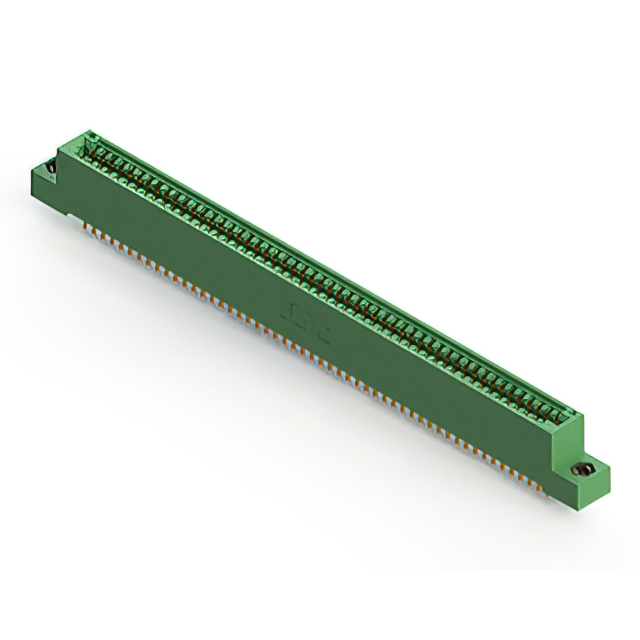

CARD EDGE CONNECTOR, 104 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40UNC, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-104-556-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 104 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40UNC, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-104-556-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 104 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-104 Series
...
| Part | Termination | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Gender | Features | Card Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions | Termination Rows | Contact Material | Number of Rows | Flange Feature | Material - Insulation | Color | Mounting Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Card Extender | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | M3 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | Green | Board Edge Straddle Mount | ||||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Green | Through Hole | ||||||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Card Extender | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | Green | Board Edge Straddle Mount | 3.25 mm | 0.128 in | ||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Card Extender | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | Green | Board Edge Straddle Mount | 3.25 mm | 0.128 in | ||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Top Mount Opening Unthreaded | Diallyl Phthalate (DAP) | Green | Through Hole Right Angle | 0.156 in | 3.96 mm | |||
EDAC Inc. | Wire Wrap | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Floating Bobbin Top Mount Opening | Diallyl Phthalate (DAP) | Green | Through Hole | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Card Extender | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Green | Board Edge Straddle Mount | ||||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Flush Mount Side Opening Unthreaded | Diallyl Phthalate (DAP) | Green | Through Hole Right Angle | 0.128 " | 3.25 mm | |||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Diallyl Phthalate (DAP) | Green | Through Hole | ||||||
EDAC Inc. | Solder | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Female | Card Extender | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | 52 | 104 | 2 | Copper Alloy | 2 | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Green | Board Edge Straddle Mount | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 118.12 | |
Description
General part information
845-104 Series
104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
