STN061050BL15

Active

Eaton - Electronics Division

TVS DIODE 5VWM 17VC DFN0603-2L

Search across all available documentation for this part.

Active

Eaton - Electronics Division

TVS DIODE 5VWM 17VC DFN0603-2L

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

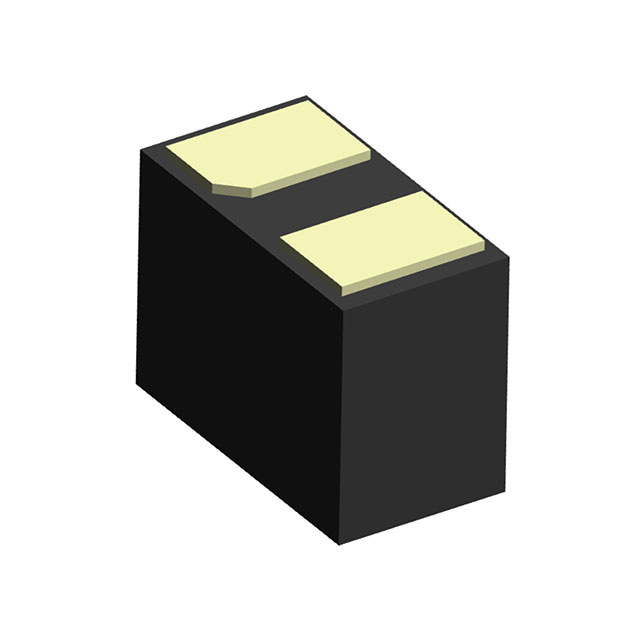

17V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN0603-2L

Technical documentation and resources

Specification	STN061050BL15	STN061050 Series

Applications	Telecom	Telecom, DVI, USB
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	0.15 pF	0.15 - 35 pF
Current - Peak Pulse (10/1000µs)	4 A	4 - 19 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	85 - 125 ¯C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Package / Case	0603 Metric	0603 Metric
Package / Case	0201	0201
Power - Peak Pulse	4 W	4 - 100 W
Power Line Protection	False	False
Supplier Device Package	DFN0603-2L	DFN0603-2L
Type	Zener	Zener
Voltage - Breakdown (Min) [Min]	5.5 V	5.3 - 6 V
Voltage - Clamping (Max) @ Ipp	-	8.4 - 23 V
Voltage - Clamping (Max) @ Ipp [Max]	17 V	15 - 17 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

Part	Voltage - Reverse Standoff (Typ)	Package / Case	Package / Case	Capacitance @ Frequency	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Type	Mounting Type	Voltage - Clamping (Max) @ Ipp
Eaton - Electronics Division STN061050B101	5 V	0603 Metric	0201	10 pF	DFN0603-2L	5.5 V	80 W	5 A	125 ¯C	-55 °C	1	Telecom	15 V	Zener	Surface Mount
Eaton - Electronics Division STN061050B351	5 V	0603 Metric	0201	35 pF	DFN0603-2L			19 A	85 C	-55 C	1	DVI, Telecom, USB		Zener	Surface Mount	8.4 V
Eaton - Electronics Division STN061050BL40	5 V	0603 Metric	0201	0.4 pF	DFN0603-2L	6 V	100 W	5 A	125 ¯C	-55 °C	1	Telecom		Zener	Surface Mount	23 V
Eaton - Electronics Division STN061050B300	5 V	0603 Metric	0201	3 pF	DFN0603-2L	5.3 V	41 W	7 A	125 ¯C	-55 °C	1	DVI, USB		Zener	Surface Mount	12 V
Eaton - Electronics Division STN061050BL15	5 V	0603 Metric	0201	0.15 pF	DFN0603-2L	5.5 V	4 W	4 A	125 ¯C	-40 °C	1	Telecom	17 V	Zener	Surface Mount
