M1TXK-4036J
Active3M
IDC CABLE - MSD40K/MC40G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1TXK-4036J
Active3M
IDC CABLE - MSD40K/MC40G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1TXK-4036J | M1TXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length [x] | 3 ft | 3 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 m |
| Number of Positions | 40 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1TXK Series
IDC CABLE - MSD34K/MC34F/X
| Part | Cable Termination | Pitch - Connector | Pitch - Connector | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features | Length [x] | Length [x] | Connector Type | Shielding | Pitch - Cable | Pitch - Cable | Color | Number of Rows | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 1.02 m | 3.34 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | Multiple, Twisted Pair (Flat) | 2 | 34 | ||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | 2 | 24 | |||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | 20 | ||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | 26 | ||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 1.02 m | 3.34 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | Multiple, Twisted Pair (Flat) | 2 | 10 | ||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 1.02 m | 3.34 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | Multiple, Twisted Pair (Flat) | 2 | 26 | ||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | 30 | ||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | 2 | 10 | |||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | 2 | 16 | |||
IDC | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | Polarizing Key | 914.4 mm | 3 ft | Socket to Cable | Unshielded | 0.05 " | 1.27 mm | 2 | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.57 | |
| 10 | $ 14.29 | |||
| 25 | $ 12.93 | |||
| 50 | $ 12.01 | |||
| 100 | $ 11.18 | |||
| 250 | $ 10.19 | |||
| 500 | $ 9.53 | |||
| 1000 | $ 8.93 | |||
Description
General part information
M1TXK Series

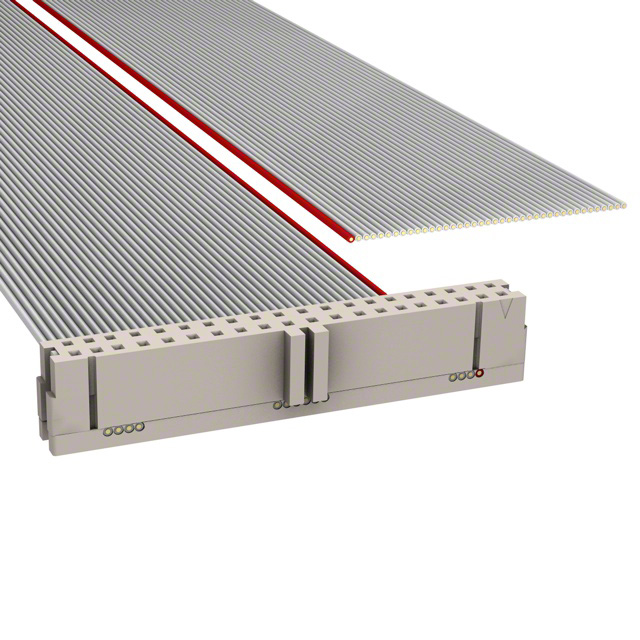

40 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
