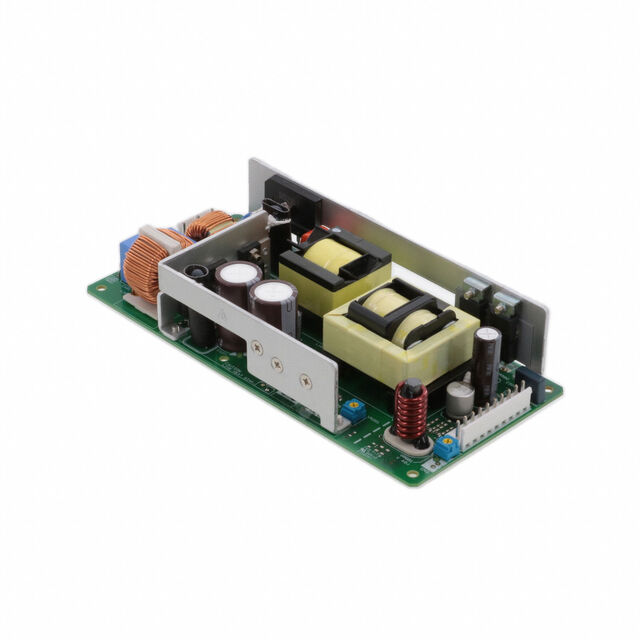

LHA300F-48-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V 302W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V 302W

Technical Specifications

Parameters and characteristics for this part

Specification	LHA300F-48-Y

Applications	ITE (Commercial)
Approval Agency	cURus, UL, CE, DEMKO, TUV
Current - Output 1	6.3 A
Efficiency	93.5 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	302 W
Size / Dimension [x]	7.09 in
Size / Dimension [x]	180.1 mm
Size / Dimension [y]	3.31 "
Size / Dimension [y]	84.1 mm
Size / Dimension [z]	1.32 in
Size / Dimension [z]	33.5 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Approval Agency	Standard Number	Efficiency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power (Watts)	Features	Number of Outputs	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Current - Output 1	Type
Cosel USA, Inc. LHA300F-48-Y	CE cURus DEMKO TUV UL	62368-1	93.5 %	3000 V	-10 °C	70 °C	Chassis Mount	302 W	Adjustable Output Universal Input	1	48 V	1.32 in	7.09 in	33.5 mm	3.31 "	84.1 mm	180.1 mm	ITE (Commercial)	6.3 A	Open Frame
Cosel USA, Inc. LHA300F-12-Y	CE cURus DEMKO TUV UL	62368-1	91.5 %	3000 V	-10 °C	70 °C	Chassis Mount	300 W	Adjustable Output Universal Input	1	12 V	1.32 in	7.09 in	33.5 mm	3.31 "	84.1 mm	180.1 mm	ITE (Commercial)	25 A	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
