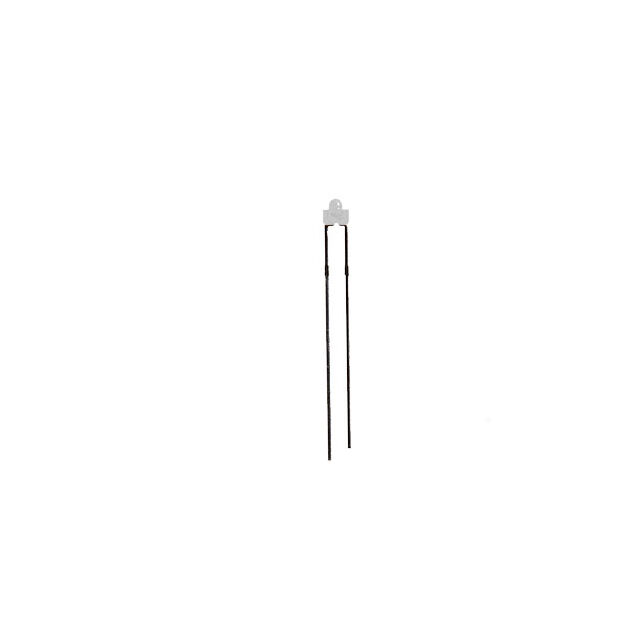

1.8BC-Y/G

Active

Bivar Inc.

LED, THROUGH HOLE, 1.8MM, BI-COLOR, YELLOW/GREEN, (590NM/568NM), (3.5MCD/4.5MCD), WHITE DIFFUSED LENS, 50 DEG VIEWING ANGLE / BA

Search across all available documentation for this part.

Active

Bivar Inc.

LED, THROUGH HOLE, 1.8MM, BI-COLOR, YELLOW/GREEN, (590NM/568NM), (3.5MCD/4.5MCD), WHITE DIFFUSED LENS, 50 DEG VIEWING ANGLE / BA

Technical Specifications

Parameters and characteristics commom to parts in this series

LED, THROUGH HOLE, 1.8MM, BI-COLOR, YELLOW/GREEN, (590NM/568NM), (3.5MCD/4.5MCD), WHITE DIFFUSED LENS, 50 DEG VIEWING ANGLE / BA

Part	Wavelength - Peak	Package / Case	Lens Size [diameter]	Height (Max) [Max] [z]	Mounting Type	Lens Style	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Lens Color	Supplier Device Package	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating
Bivar Inc. 1.8BC-Y/G	568 nm, 590 nm	Radial	1.7 mm	3 mm	Through Hole	Round with Domed Top	Diffused	3.5 mcd	4.5 mcd	Green, Yellow	White	Radial Lead	50 °	2 V, 2.1 V	20 mA, 20 mA	Bidirectional
Bivar Inc. 1.8BC		Radial	1.8 mm	3 mm	Through Hole	Round with Domed Top	Diffused			Green, Red	White	Radial Lead	70 °		20 mA, 20 mA	Bidirectional	640 nm	568 nm	2.2 V	2.1 V	4mcd Green, 4mcd Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Yellow LED Indication - Discrete 2.1V Green, 2V Yellow Radial
