3258 Series

Part	Diameter - Barrel ID	Diameter - Barrel OD	Contact Material	Contact Finish	Wire Gauge (MCM)	Width - Outer Edges	Termination	Mounting Type	Tab Thickness	Insulation	Terminal Type	Length - Overall	Terminal Style	Diameter - Ring ID	Stud/Tab Size	Stud/Tab Size	Stud/Tab Size (Type)	Features	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Ring Center to Termination	Tongue Inside Opening	Material - Insulation	Length - Termination

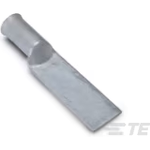

TE Connectivity AMP Connectors 325821	0.758 in	1.14 in	Copper	Tin	300 MCM	1.4 in	Barrel Crimb	Free Hanging (In-Line)	0.16 in	Non-Insulated	Rectangular Tongue	6.01 in	No Stud Hole
TE Connectivity AMP Connectors 325803	0.758 in	0.951 in	Copper	Tin	300 MCM	1.4 in	Barrel Crimb	Free Hanging (In-Line)	0.16 in	Non-Insulated	Standard	2.69 in	Single Stud Hole	0.39 in	0.375 in	3 Stud 8 Stud
TE Connectivity AMP Connectors 325802	0.758 in	0.951 in	Copper	Tin	300 MCM	1.4 in	Barrel Crimb	Free Hanging (In-Line)	0.16 in	Non-Insulated	Standard	2.69 in	Single Stud Hole	0.328 in	0.3125 in	16 Stud 5 Stud	Stud
TE Connectivity AMP Connectors 32589			Copper	Tin		0.406 in	Crimp	Free Hanging (In-Line)		Insulated	Standard	1.095 in			10 Stud			Serrated Termination	Yellow	12 AWG	10 AWG	0.15 in	0.23 in	0.296 in	0.197 in	Nylon PA Polyamide	0.591 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
