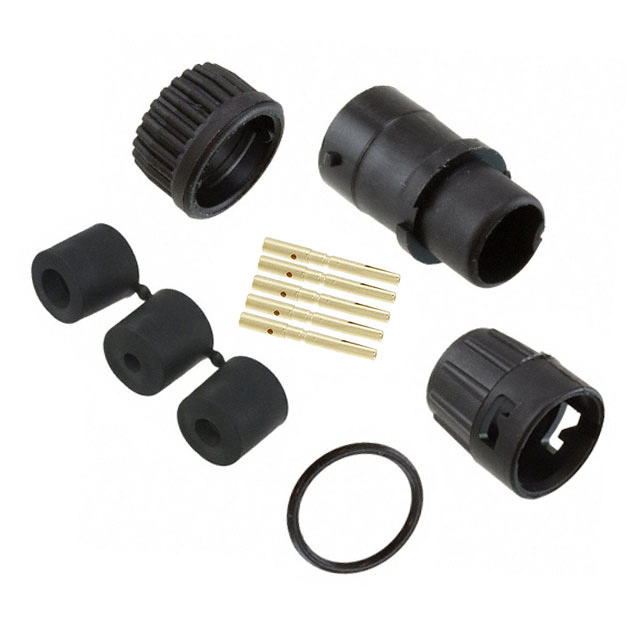

6380-5SG-3DC
ActiveConxall/Switchcraft
CONN PLUG FMALE 5POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6380-5SG-3DC
ActiveConxall/Switchcraft
CONN PLUG FMALE 5POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6380-5SG-3DC | 6380-5SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 0.21 - 0.25 in |
| Cable Opening | - | 0.19 - 0.22 in |
| Cable Opening | - | 4.83 - 5.59 mm |
| Cable Opening | - | 5.33 - 6.35 mm |
| Cable Opening | - | 4.06 - 4.57 mm |
| Cable Opening | - | 0.16 - 0.18 in |
| Cable Opening | - | 0.18 - 0.2 in |
| Cable Opening | - | 4.57 - 5.08 mm |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 5.84 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
6380-5SG Series
CONN PLUG FMALE 5POS GOLD CRIMP
| Part | Contact Material | Orientation | Backshell Material, Plating | Color | Primary Material | Features | Current Rating (Amps) | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Contact Finish - Mating | Connector Type | Ingress Protection | Cable Opening [custom] | Cable Opening [custom] | Voltage Rating | Mounting Type | Fastening Type | Shielding | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6380-5SG-315 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | ||||||||||||
Conxall/Switchcraft 6380-5SG-519 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | 0.21 in | 0.19 in | 4.83 mm | 5.33 mm | ||||||||||
Conxall/Switchcraft 6380-5SG-318 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | ||||||||||
Conxall/Switchcraft 6380-5SG-516 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | 4.06 mm | 0.16 in | 0.18 in | 4.57 mm | ||||||||||
Conxall/Switchcraft 6380-5SG-3DC | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | ||||||||||||||
Conxall/Switchcraft 6380-5SG-522 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | 0.25 in | 0.22 in | 5.59 mm | 6.35 mm | ||||||||||
Conxall/Switchcraft 6380-5SG-311 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | |||||||||||
Conxall/Switchcraft 6380-5SG-321 | Brass | Keyed | Nylon, Polyamide (PA) | Black | Plastic | Backshell | Varies by Wire Gauge | Crimp | -40 °C | 115 °C | Automotive, Communication Systems, Instrumentation | Gold | Female Sockets, Plug | Weathertight | 600 V | Free Hanging (In-Line) | Bayonet Lock | Unshielded | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.74 | |
| 10 | $ 9.98 | |||
| 25 | $ 9.35 | |||
| 50 | $ 8.91 | |||
| 100 | $ 8.48 | |||
| 300 | $ 8.35 | |||
Description
General part information
6380-5SG Series
5 Position Circular Connector Plug, Female Sockets Crimp
