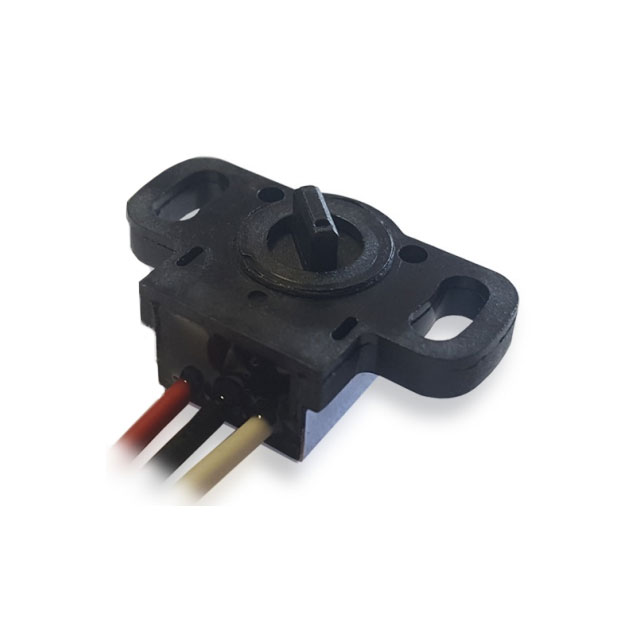

MSC360-1A-C0007-ERA180-05K

Active

Amphenol Piher Sensing Systems

MINIATURE HALL-EFFECT ROTARY POS

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

MINIATURE HALL-EFFECT ROTARY POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MSC360-1A-C0007-ERA180-05K	MSC360 Series

Actuator Type	Flatted Shaft	Flatted Shaft
For Measuring	Rotary Position, Linear	Rotary Position, Linear
Linearity	1.5 %	1.5 %
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	PWM	Analog Voltage, PWM
Output Signal	Clockwise Increase	Clockwise Increase
Package / Case	Box with Wire Leads	Box with Wire Leads
Rotation Angle - Electrical, Mechanical [Max]	360 °	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °	0 °
Technology	Hall Effect	Hall Effect
Termination Style	Wire Leads	Wire Leads
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

MINIATURE HALL-EFFECT ROTARY POS

Part	Actuator Type	Output	Mounting Type	Termination Style	For Measuring	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Signal	Linearity	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Package / Case
Amphenol Piher Sensing Systems MSC360-1A-C0004-ERA360-05K	Flatted Shaft	Analog Voltage	Chassis Mount	Wire Leads	Linear, Rotary Position	Hall Effect	125 °C	-40 °C	4.5 V	5.5 V	Clockwise Increase	1.5 %	360 °	0 °	Box with Wire Leads
Amphenol Piher Sensing Systems MSC360-1A-C0007-ERA180-05K	Flatted Shaft	PWM	Chassis Mount	Wire Leads	Linear, Rotary Position	Hall Effect	125 °C	-40 °C	4.5 V	5.5 V	Clockwise Increase	1.5 %	360 °	0 °	Box with Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Linear, Rotary Position Flatted Shaft Wire Leads
