General part information

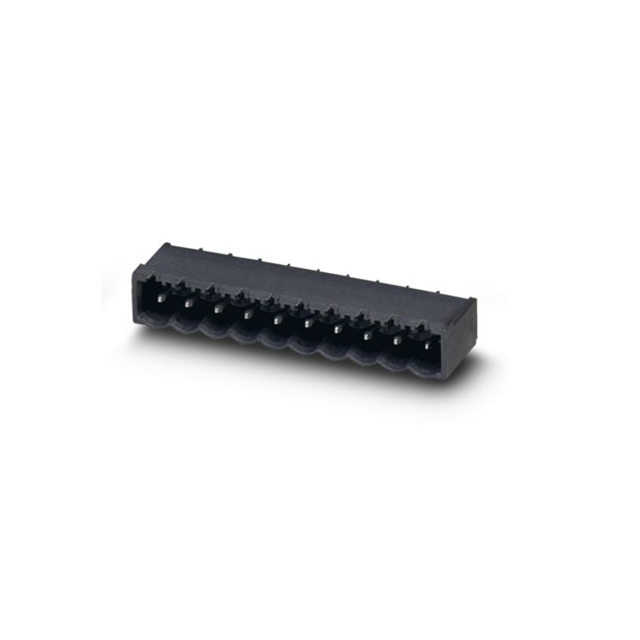

Pluggable Terminal Blocks CCA 2,5/21-G P20 THR
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1955015 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.102 in |
| Contact Tail Length | 2.6 mm |
| Current - IEC | 12 A |
| Current - UL | 10 A |
| Header Orientation | 90°, Right Angle |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 8.61 mm |
| Insulation Height | 0.339 " |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 11 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 11 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
Pluggable Terminal Blocks CCA 2,5/21-G P20 THR
| Part | Voltage - IEC | Housing Material | Insulation Height | Insulation Height | Current - UL | Number of Levels | Header Orientation | Number of Positions | Positions Per Level | Contact Tail Length | Contact Tail Length | Type | Color | Pitch [x] | Pitch [x] | Contact Mating Finish | Current - IEC | Termination Style | Material Flammability Rating | Voltage - UL | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1955015 | 400 V | Liquid Crystal Polymer (LCP) | 8.61 mm | 0.339 " | 10 A | 1 | 90°, Right Angle | 11 | 11 | 0.102 in | 2.6 mm | Header, Male Pins, Shrouded (4 Side) | Black | 0.2 in | 5.08 mm | Tin | 12 A | Solder | UL94 V-0 | 300 V | Through Hole |
