Technical Specifications
Parameters and characteristics for this part
| Specification | LR0204F1K2 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 1.2 kOhms |
| Size / Dimension [diameter] | 0.079 " |
| Size / Dimension [diameter] | 2 mm |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| Tape & Box (TB) | 4000 | $ 0.02 | ||
| 8000 | $ 0.01 | |||
| 12000 | $ 0.01 | |||
| 20000 | $ 0.01 | |||
| 28000 | $ 0.01 | |||
| 40000 | $ 0.01 | |||
| 100000 | $ 0.01 | |||
Description
General part information

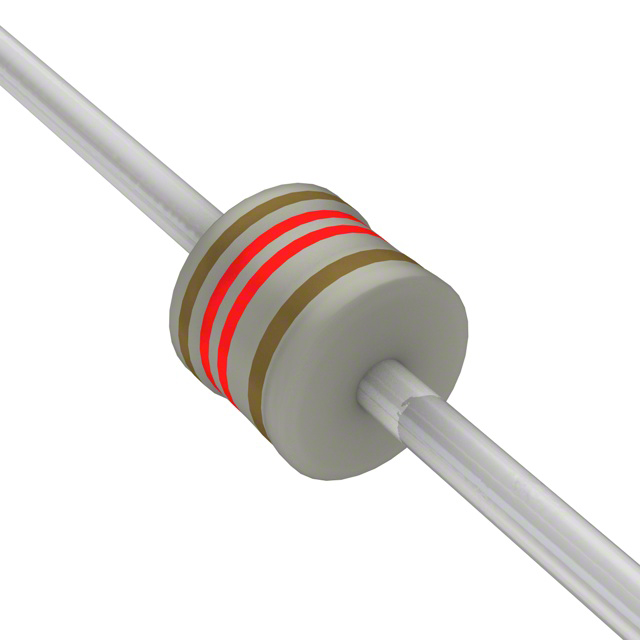

LR0204 Series
1.2 kOhms ±1% 0.25W, 1/4W Through Hole Resistor Axial Metal Film
