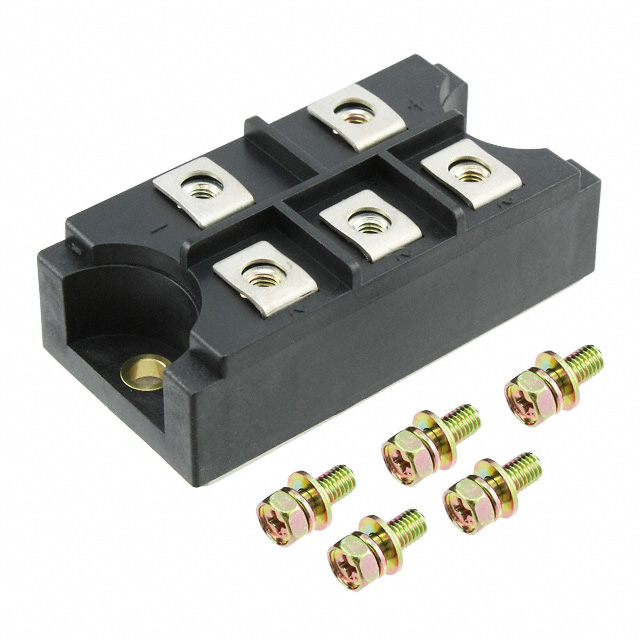

Specification	ME501610

Current - Average Rectified (Io)	100 A
Current - Reverse Leakage	10 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Package Name	Module
Technology	Standard
Voltage - Forward (Vf) (Max)	1.2 V
Voltage - Peak Reverse (Max)	1.6 kV

ME501 Series

Part	Mounting Type	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Technology	Voltage - Forward (Vf) (Max)	Diode Type	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Current - Reverse Leakage	Package Name
Powerex Inc. ME501610	Chassis Mount	Module	-40 °C	150 °C	Standard	1.2 V	Three Phase	1.6 kV	100 A	10 mA	Module
Powerex Inc. ME501206	Chassis Mount	Module	-40 °C	150 °C	Standard	1.3 V	Three Phase	1200 V	60 A	10 mA	Module
Powerex Inc. ME501210	Chassis Mount	Module	-40 °C	150 °C	Standard	1.2 V	Three Phase	1200 V	100 A	10 mA	Module
