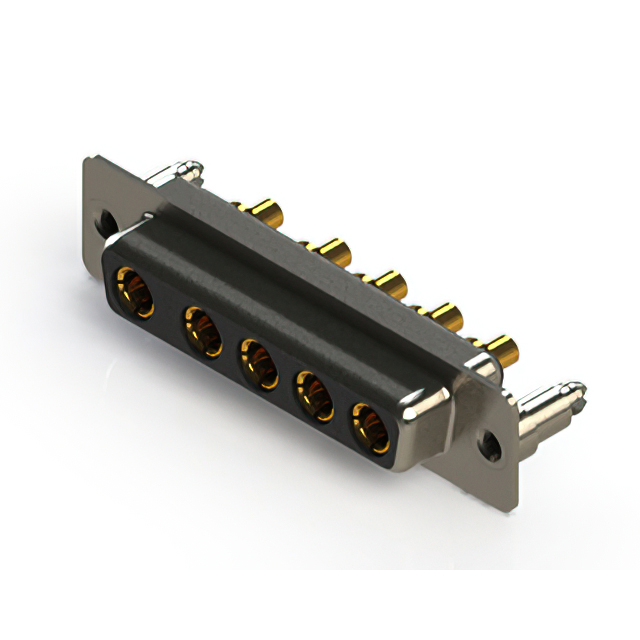

628-5W5-224-2ND

Active

EDAC Inc.

CONN D-SUB RCPT 5POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-5W5-224-2ND

Active

EDAC Inc.

CONN D-SUB RCPT 5POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-5W5-224-2ND

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	20 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

628-5W5 Series

...

Part	Number of Rows	Contact Material	Connector Style	Features	Contact Type	Shell Material, Finish	Contact Finish	Mounting Type	Contact Finish Thickness	Termination	Material Flammability Rating	Connector Type	Current Rating (Amps)	Dielectric Material	Voltage Rating	Color	Flange Feature	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]	Number of Positions
EDAC Inc. 628-5W5-224-2N5	1	Copper Alloy	Combo D-Sub	Board Lock Shielded	Signal and Power	Nickel Plated Steel	Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	20 A	Polyester Thermoplastic	125 VDC	Black	4-40 Board Side	5	-55 °C	125 °C	5W5	3
EDAC Inc. 628-5W5-224-1T4	1	Copper Alloy	Combo D-Sub	Shielded	Signal and Power		Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	10 A	Polyester Thermoplastic	125 VDC	Black	4-40	5	-55 °C	125 °C	5W5	3
EDAC Inc. 628-5W5-224-3T6	1	Copper Alloy	Combo D-Sub	Board Lock Shielded	Signal and Power		Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	30 A	Polyester Thermoplastic	125 VDC	Black	4-40	5	-55 °C	125 °C	5W5	3
EDAC Inc. 628-5W5-624-2T2	1	Copper Alloy	Combo D-Sub	Shielded	Signal and Power		Gold	Through Hole		Solder	UL94 V-0	Receptacle Female Sockets	20 A	Polyester Thermoplastic	125 VDC	Black	4-40 Board Side	5	-55 °C	125 °C	5W5	3	0.76 Ám	30 Áin
EDAC Inc. 628-5W5-224-3NC	1	Copper Alloy	Combo D-Sub	Shielded	Signal and Power	Nickel Plated Steel	Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	30 A	Polyester Thermoplastic	125 VDC	Black		5	-55 °C	125 °C	5W5	3			M3	M3
EDAC Inc. 628-5W5-224-2ND	1	Copper Alloy	Combo D-Sub	Board Lock Shielded	Signal and Power	Nickel Plated Steel	Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	20 A	Polyester Thermoplastic	125 VDC	Black	Board Side (M3)	5	-55 °C	125 °C	5W5	3
EDAC Inc. 628-5W5-222-7T2	1	Copper Alloy	Combo D-Sub	Shielded	Coax Signal		Gold	Free Hanging (In-Line)	Flash		UL94 V-0	Receptacle Female Sockets		Polyester Thermoplastic	125 VDC	Black	4-40 Board Side		-55 °C	125 °C	5W5	3					5
EDAC Inc. 628-5W5-622-1N1	1	Copper Alloy	Combo D-Sub	Shielded	Signal and Power	Nickel Plated Steel	Gold	Free Hanging (In-Line)			UL94 V-0	Receptacle Female Sockets	10 A	Polyester Thermoplastic	125 VDC	Black	Housing/Shell (Unthreaded)	5	-55 °C	125 °C	5W5	3	0.76 Ám	30 Áin
EDAC Inc. 628-5W5-224-2N6	1	Copper Alloy	Combo D-Sub	Board Lock Shielded	Signal and Power	Nickel Plated Steel	Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	20 A	Polyester Thermoplastic	125 VDC	Black	4-40	5	-55 °C	125 °C	5W5	3
EDAC Inc. 628-5W5-224-1TD	1	Copper Alloy	Combo D-Sub	Board Lock Shielded	Signal and Power		Gold	Through Hole	Flash	Solder	UL94 V-0	Receptacle Female Sockets	10 A	Polyester Thermoplastic	125 VDC	Black	Board Side (M3)	5	-55 °C	125 °C	5W5	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.02

Description

General part information

628-5W5 Series

5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
