346-100 Series

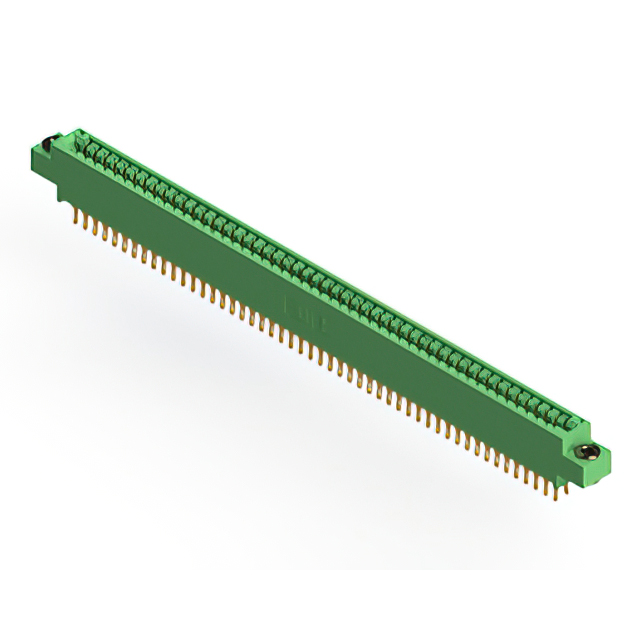

100 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	346-100-555-803

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Floating Bobbin, Top Mount Opening
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	100, 50
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

346-100 Series

...

Part	Features	Number of Rows	Flange Feature	Contact Finish	Number of Positions	Card Type	Card Thickness (Min)	Card Thickness (Max)	Read Out	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Pitch	Contact Finish Thickness	Contact Type	Color	Gender	Termination	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 346-100-560-878	Card Extender Card Guides	2	4-40 Threaded Insert Top Mount Opening	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Board Edge Straddle Mount	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder	Polyester Thermoplastic	2 rows
EDAC Inc. 346-100-526-804		2	Top Mount Opening Unthreaded	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Through Hole	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder	Polyester Thermoplastic	2 rows	0.156 in
EDAC Inc. 346-100-555-803	Card Extender	2	Floating Bobbin Top Mount Opening	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Board Edge Straddle Mount	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder Eyelet(s)	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 346-100-555-258	Card Extender Card Guides	2	4-40 Flush Mount Threaded Insert Top Opening	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Board Edge Straddle Mount	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder Eyelet(s)	Polyester Thermoplastic	2 rows
EDAC Inc. 346-100-520-801		2		Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Through Hole	-40 °C	105 °C	Copper Alloy	0.125 in		Cantilever	Green	Female	Solder	Polyester Thermoplastic	2 rows
EDAC Inc. 346-100-541-808		2	4-40 Threaded Insert Top Mount Opening	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Through Hole	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Wire Wrap	Polyester Thermoplastic	2 rows
EDAC Inc. 346-100-559-878	Card Guides	2	4-40 Threaded Insert Top Mount Opening	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Right Angle Through Hole	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder Wire Wrap	Polyester Thermoplastic	2 rows
EDAC Inc. 346-100-555-202	Card Extender	2	Flush Mount Top Opening Unthreaded	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Board Edge Straddle Mount	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder Eyelet(s)	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 346-100-556-804	Card Extender	2	Top Mount Opening Unthreaded	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Board Edge Straddle Mount	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder	Polyester Thermoplastic	2 rows	0.156 in
EDAC Inc. 346-100-559-812		2	Side Mount Opening Unthreaded	Gold	50 100	Dual Edge Non Specified	0.054 in	0.07 in	Dual	Right Angle Through Hole	-40 °C	105 °C	Copper Alloy	0.125 in	10 Ąin	Cantilever	Green	Female	Solder Wire Wrap	Polyester Thermoplastic	2 rows	0.128 in
