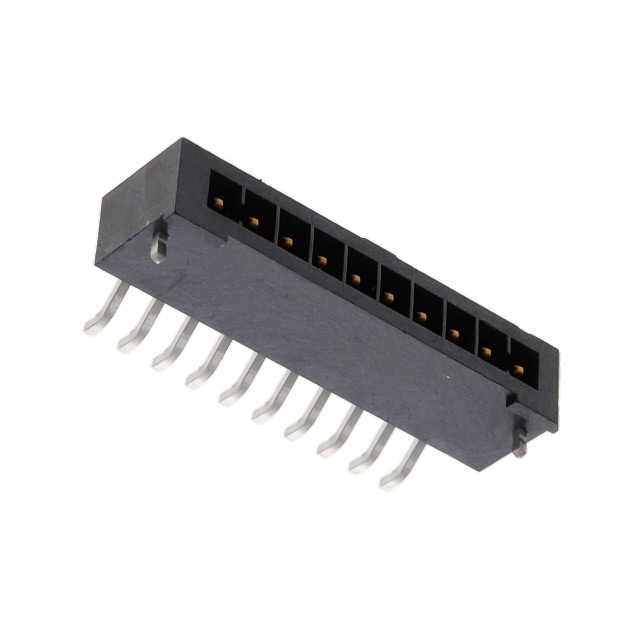

IPL1-110-02-S-SH-K

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPD1 Series Other Related Documents 03 IPL1 Series Other Related Documents 01 +2

IPL1-110-02-S-SH-K

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsIPD1 Series Other Related Documents 03 IPL1 Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-110-02-S-SH-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-110 Series

Part	Contact Finish - Post	Number of Positions	Shrouding	Insulation Material	Number of Rows	Number of Positions Loaded	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Shape	Voltage Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Termination	Contact Material	Style	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Features
Samtec Inc. IPL1-110-01-H-S-K	Gold	10	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	1	All	Locking Ramp	0.12 in	3.05 mm	Male Pin	Square	675 VAC 954 VDC	Header	30 Áin	0.76 Ám	Gold	-55 °C	125 °C	3 µin	0.076 µm	8.13 mm	0.32 in	Natural	Through Hole	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm
Samtec Inc. IPL1-110-01-H-D-RA-K	Gold	20	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	2	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	30 Áin	0.76 Ám	Gold	-55 °C	125 °C	3 µin	0.076 µm	7.37 mm	0.29 in	Natural	Through Hole Right Angle	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm	2.54 mm	0.1 in	2.16 mm	0.085 in
Samtec Inc. IPL1-110-02-S-D-K	Tin	20	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	2	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	30 Áin	0.76 Ám	Gold	-55 °C	125 °C			8.13 mm	0.32 in	Natural	Surface Mount	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. IPL1-110-02-S-SH-K	Tin	10	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	1	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	30 Áin	0.76 Ám	Gold	-55 °C	125 °C			5.6 mm	0.22 in	Natural	Surface Mount Right Angle	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm					Board Guide
Samtec Inc. IPL1-110-02-F-S-K	Tin	10	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	1	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	3 µin	0.076 µm	Gold	-55 °C	125 °C			8.13 mm	0.32 in	Natural	Surface Mount	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm
Samtec Inc. IPL1-110-01-F-D-RA-K	Tin	20	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	2	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	3 µin	0.076 µm	Gold	-55 °C	125 °C			7.37 mm	0.29 in	Natural	Through Hole Right Angle	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm	2.54 mm	0.1 in	2.16 mm	0.085 in
Samtec Inc. IPL1-110-01-L-D-K	Tin	20	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	2	All	Locking Ramp	0.12 in	3.05 mm	Male Pin	Square	675 VAC 954 VDC	Header	10 çin	0.25 çm	Gold	-55 °C	125 °C			8.13 mm	0.32 in	Natural	Through Hole	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. IPL1-110-02-H-D-K	Gold	20	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	2	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	30 Áin	0.76 Ám	Gold	-55 °C	125 °C	3 µin	0.076 µm	8.13 mm	0.32 in	Natural	Surface Mount	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. IPL1-110-01-F-S-RE1-K	Tin	10	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	1	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	3 µin	0.076 µm	Gold	-55 °C	125 °C			6.1 mm	0.24 in	Natural	Through Hole Right Angle	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm			2.16 mm	0.085 in
Samtec Inc. IPL1-110-02-L-D-P-TR	Tin	20	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	2	All	Locking Ramp			Male Pin	Square	675 VAC 954 VDC	Header	10 çin	0.25 çm	Gold	-55 °C	125 °C			8.13 mm	0.32 in	Natural	Surface Mount	5.46 mm	0.215 in	UL94 V-0	Solder	Phosphor Bronze	Board to Cable/Wire	0.1 in	2.54 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.70
		10	$ 5.97
		25	$ 5.51
		50	$ 4.85
		100	$ 4.30
