357-027-458-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-027-458-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-027-458-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-027 Series
...
| Part | Contact Material | Contact Type | Termination Rows | Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Pitch [x] | Pitch [x] | Card Type | Flange Feature | Number of Rows | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Features | Read Out | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 27 | Gold | 10 Áin | 0.25 Ám | 27 | Card Guides | Single | Female | ||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Wire Wrap | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 1 | 27 | Gold | 10 Áin | 0.25 Ám | 27 | Single | Female | 3.96 mm | 0.156 in | |
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 54 | Gold | 10 Áin | 0.25 Ám | 27 | Dual | Female | ||||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder Eyelet(s) | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 54 | Gold | 10 Áin | 0.25 Ám | 27 | Card Guides | Dual | Female | ||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | Non Specified - Single Edge | Floating Bobbin Flush Mount | 1 | 27 | Tin | 27 | Single | Female | 2.95 mm | 0.116 in | |||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 0.156 in | 3.96 mm | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 27 | Gold | 10 Áin | 0.25 Ám | 27 | Single | Female | |||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 1 | 27 | Gold | 10 Áin | 0.25 Ám | 27 | Single | Female | |||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 0.156 in | 3.96 mm | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 27 | Gold | 10 Áin | 0.25 Ám | 27 | Single | Female | |||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 0.156 in | 3.96 mm | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 1 | 27 | Tin | 27 | Single | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | Semi Bellows | 1 | Black | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 0.156 in | 3.96 mm | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 1 | 27 | Tin | 27 | Single | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-027 Series

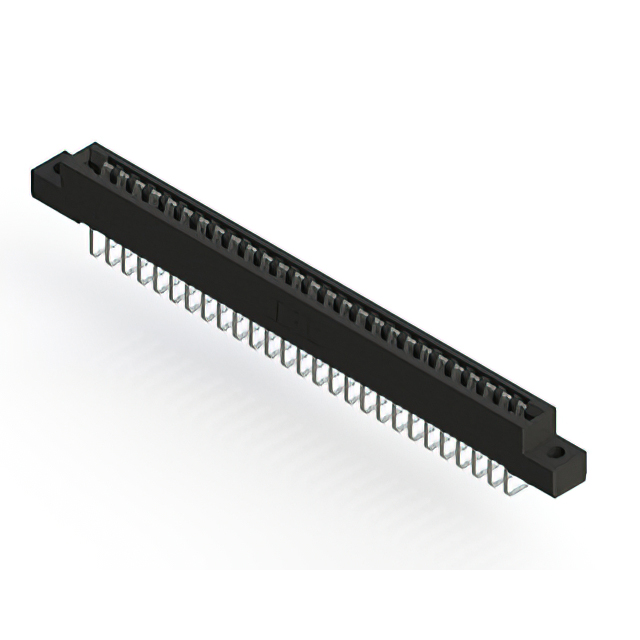

27 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
