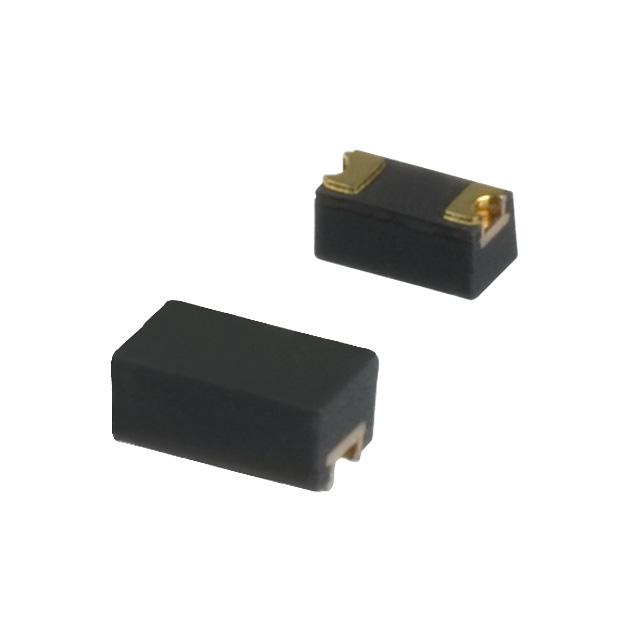

CDBU00340

Active

Comchip Technology

DIODE SCHOTTKY 40V 30MA 0603C

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 40V 30MA 0603C

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBU00340	CDBU00340 Series

Capacitance @ Vr, F	1.5 pF	1.5 pF
Current - Average Rectified (Io)	30 mA	30 mA
Current - Reverse Leakage @ Vr	1 µA	1 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	125 °C	125 °C
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	0603C/SOD-523F	0603/SOD-523F, 0603C/SOD-523F
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V	40 V
Voltage - Forward (Vf) (Max) @ If	370 mV	370 mV

DIODE SCHOTTKY 45V 0.03A 2-PIN SOD-523F T/R

Part	Capacitance @ Vr, F	Speed	Speed	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction	Supplier Device Package	Current - Average Rectified (Io)
Comchip Technology CDBU00340-HF	1.5 pF	Any Speed	200 mA	Surface Mount	40 V	370 mV	2-SMD, No Lead	1 µA	Schottky	125 °C	0603/SOD-523F	30 mA
Comchip Technology CDBU00340	1.5 pF	Any Speed	200 mA	Surface Mount	40 V	370 mV	2-SMD, No Lead	1 µA	Schottky	125 °C	0603C/SOD-523F	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 30mA Surface Mount 0603C/SOD-523F
