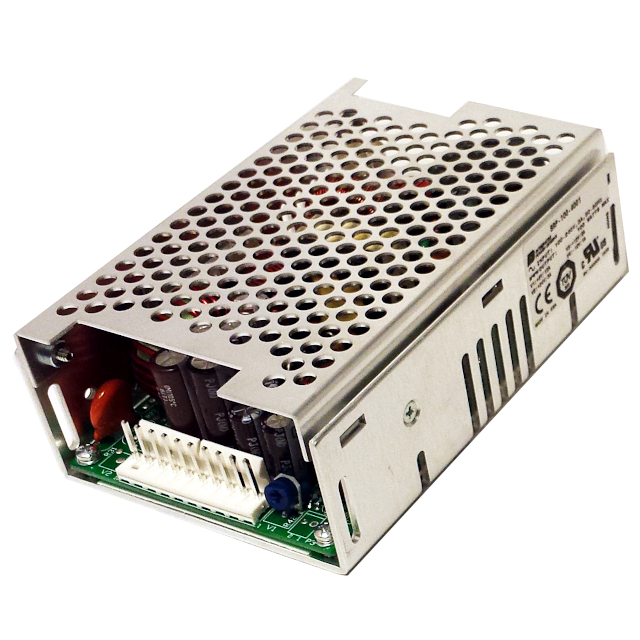

1010270CHCO

Active

Integrated Power Designs

AC/DC CNVRTR 5V 24V +/-12V 100W

Search across all available documentation for this part.

Active

Integrated Power Designs

AC/DC CNVRTR 5V 24V +/-12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	1010270CHCO

Applications	Industrial, ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	10 A
Current - Output 2	2 A
Current - Output 3	2 A
Current - Output 4	1 A
Efficiency	76 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	100 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	1.75 "
Size / Dimension [z]	44.5 mm
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	12 V

AC/DC CNVRTR 5V 24V +/-12V 100W

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Standard Number	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Current - Output 1	Current - Output 3	Voltage - Output 1	Features	Applications	Type	Voltage - Output 3	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Current - Output 4	Current - Output 2
Integrated Power Designs 1010270CHCO	CE, cURus, TUV, UKCA	70 °C	0 °C	4	100 W	60601-1, 62368-1	1.75 "	44.5 mm	127 mm	3.3 in	83.8 mm	5 in	24 V	10 A	2 A	5 V	Adjustable Output, Universal Input	Industrial, ITE (Commercial), Medical	Enclosed	12 V	Chassis Mount	240 VAC	100 VAC	76 %	1 A	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V 24V 12V -12V 100 ~ 240 VAC Input
