Specification	SP24M2G5

Contact Finish	Gold
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Size	16 S
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Type	Stamped, Signal
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	24 AWG
Wire Gauge or Range - mm² (Maximum)	0.25 mm²
Wire Gauge or Range - mm² (Minimum)	0.14 mm²

SP24 Series

Part	Contact Size	Contact Finish	Contact Termination	Contact Type	Type	Features	Termination Finish	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Material	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)
McGill Microwave Systems SP24M1F	16 S	Gold	Crimp	Pin	Signal Stamped	Insulation Support	Copper Alloy	0.14 mm²	0.25 mm²	0	Flash	Flash	Copper Alloy	24 AWG	25.5 AWG

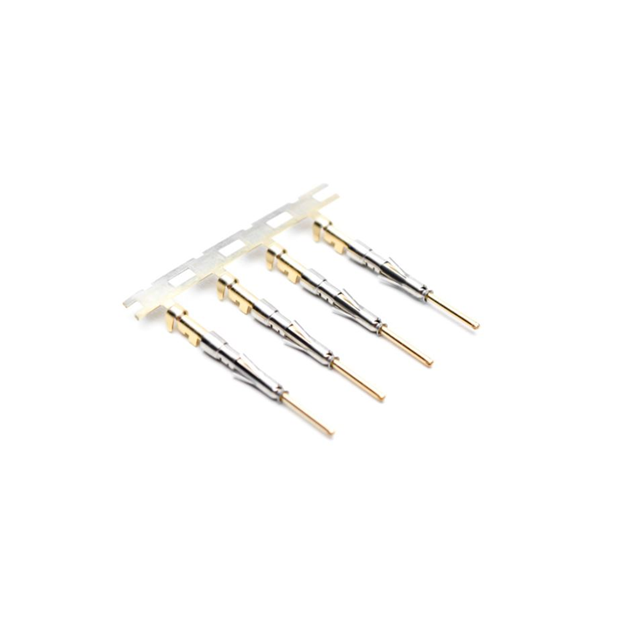

McGill Microwave Systems SP24W2G5	20	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	5 µin			Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24W2G15	20	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	15 µin			Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24M2G5	16 S	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	5 µin			Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24W1F	20	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	0	Flash	Flash	Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24M1G5	16 S	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	5 µin			Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24M2G10	16 S	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	10 Ąin			Copper Alloy	24 AWG	25.5 AWG

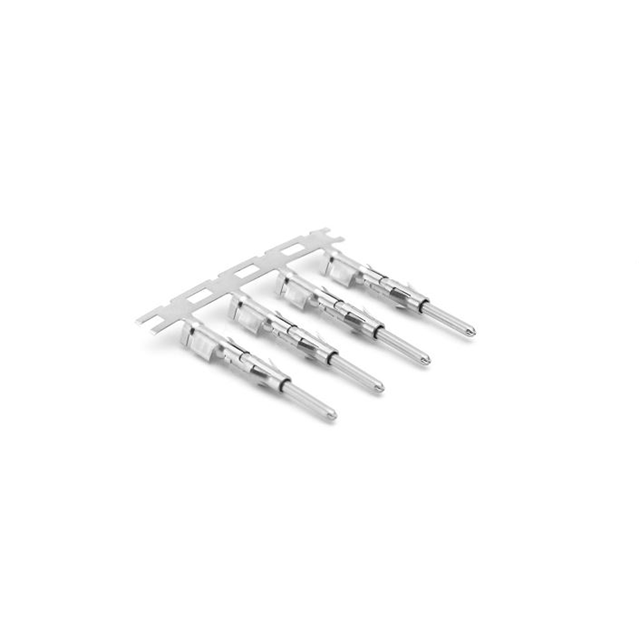

McGill Microwave Systems SP24M2T	16 S	Tin	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²				Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24W1G30	20	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	30 µin			Copper Alloy	24 AWG	25.5 AWG
McGill Microwave Systems SP24W2F	20	Gold	Crimp	Pin	Signal Stamped	Insulation Support		0.14 mm²	0.25 mm²	0	Flash	Flash	Copper Alloy	24 AWG	25.5 AWG
