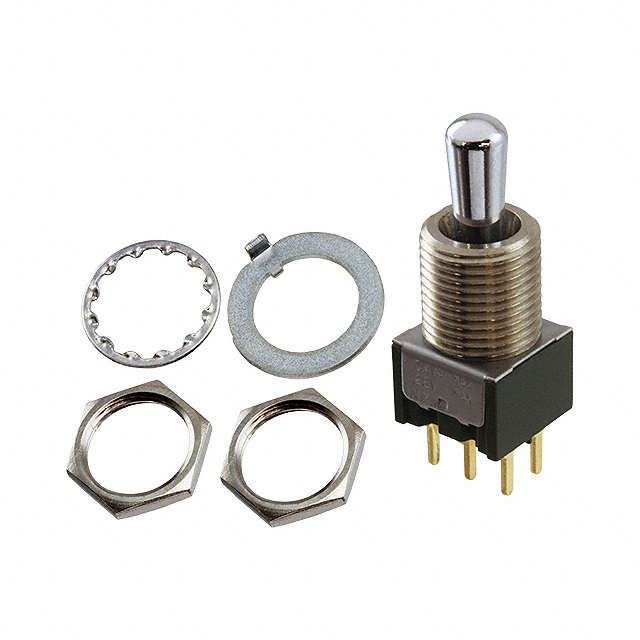

M2024BB1G03

Obsolete

NKK Switches

SWITCH TOGGLE SP3T 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SP3T 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2024BB1G03

Actuator Length [x]	11.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SP3T
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Electrical Life	Illumination	Actuator Type	Voltage Rating - AC	Bushing Thread	Bushing Thread	Actuator Material	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Termination Style	Voltage Rating - DC	Actuator Length [x]	Switch Function
NKK Switches M2024BB1G03	-30 ░C	85 °C	Jumper needed to achieve triple throw	50000 Cycles	Non-Illuminated	Standard Round	28 V	M12	1 x 1	Brass Chrome Plated	12.5 mm	0.4 VA	SP3T	PC Pin	28 V	11.5 mm	On-On-On
NKK Switches M2024BB1W02	-30 ░C	85 °C	Jumper needed to achieve triple throw	25000 Steps	Non-Illuminated	Standard Round	125 V	M12	1 x 1	Brass Chrome Plated	12.5 mm	3 A 6 A	SP3T	Quick Connect - 0.062" (1.5mm)	30 V	11.5 mm	On-On-On
NKK Switches M2024BB1UW01	-30 ░C	85 °C	Gold Actuator Jumper needed to achieve triple throw	25000 Steps	Non-Illuminated	Standard Round	125 V	M12	1 x 1	Brass Chrome Plated	12.5 mm	3 A 6 A	SP3T	Solder Lug	30 V	11.5 mm	On-On-On
NKK Switches M2024BB1W02-AT402S	-30 ░C	85 °C	Jumper needed to achieve triple throw	25000 Steps	Non-Illuminated	Standard Round	125 V	M12	1 x 1	Brass Chrome Plated	12.5 mm	3 A 6 A	SP3T	Quick Connect - 0.062" (1.5mm)	30 V	11.5 mm	On-On-On
NKK Switches M2024BB1W03	-30 ░C	85 °C	Jumper needed to achieve triple throw	25000 Steps	Non-Illuminated	Standard Round	125 V	M12	1 x 1	Brass Chrome Plated	12.5 mm	3 A 6 A	SP3T	PC Pin	30 V	11.5 mm	On-On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SP3T Panel Mount
