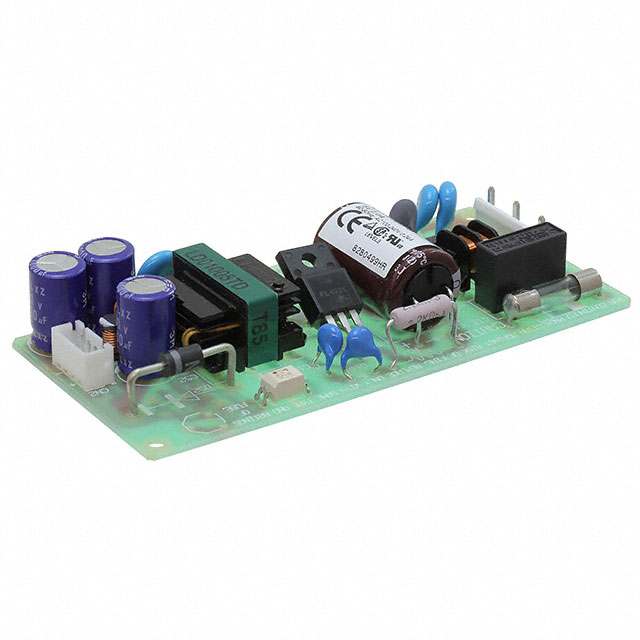

LDA10F-5

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LDA10F-5

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 5V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDA10F-5

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, cCSAus, CE
Current - Output 1	2 A
Efficiency	72 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10 W
Size / Dimension [x]	105 mm
Size / Dimension [x]	4.13 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	21 mm
Size / Dimension [z]	0.83 in
Standard Number	60950-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	110 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

LDA10F Series

Part	Efficiency	Current - Output 1	Approval Agency	Applications	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Isolation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Standard Number	Mounting Type
Cosel USA, Inc. LDA10F-5	72 %	2 A	cCSAus CE cURus TUV	ITE (Commercial)	5 V	85 VAC 110 VDC	264 VAC 370 VDC	10 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1	3000 V	Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-24	78 %	500 mA	cCSAus CE cURus TUV	ITE (Commercial)	24 V	85 VAC 110 VDC	264 VAC 370 VDC	12 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1	3000 V	Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-5-SNC	72 %	2 A	cCSAus CE cURus TUV	ITE (Commercial)	5 V	85 VAC 110 VDC	264 VAC 370 VDC	10 W	125 mm	57 mm	32 mm	1.26 in	4.92 in	2.24 "	1		Adjustable Output Universal Input	-10 °C	60 °C	Enclosed	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-12-GY	74 %	900 mA	cCSAus CE cURus TUV	ITE (Commercial)	12 V	85 VAC 110 VDC	264 VAC 370 VDC	11 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1		Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-24-C	78 %	500 mA	cCSAus CE cURus TUV	ITE (Commercial)	24 V	85 VAC 110 VDC	264 VAC 370 VDC	12 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1		Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-5-Y	72 %	2 A	cCSAus CE cURus TUV	ITE (Commercial)	5 V	85 VAC 110 VDC	264 VAC 370 VDC	10 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1	3000 V	Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-3	68 %	2 A	cCSAus CE cURus TUV	ITE (Commercial)	3 V	85 VAC 110 VDC	264 VAC 370 VDC	6 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1	3000 V	Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-12-G	74 %	900 mA	cCSAus CE cURus TUV	ITE (Commercial)	12 V	85 VAC 110 VDC	264 VAC 370 VDC	11 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1		Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-12-Y	74 %	900 mA	cCSAus CE cURus TUV	ITE (Commercial)	12 V	85 VAC 110 VDC	264 VAC 370 VDC	11 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1	3000 V	Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount
Cosel USA, Inc. LDA10F-24-CY	78 %	500 mA	cCSAus CE cURus TUV	ITE (Commercial)	24 V	85 VAC 110 VDC	264 VAC 370 VDC	12 W	105 mm	50 mm	21 mm	0.83 in	4.13 in	1.97 "	1		Adjustable Output Universal Input	-10 °C	60 °C	Open Frame	60950-1	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDA10F Series

Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC, 110 ~ 370 VDC Input
