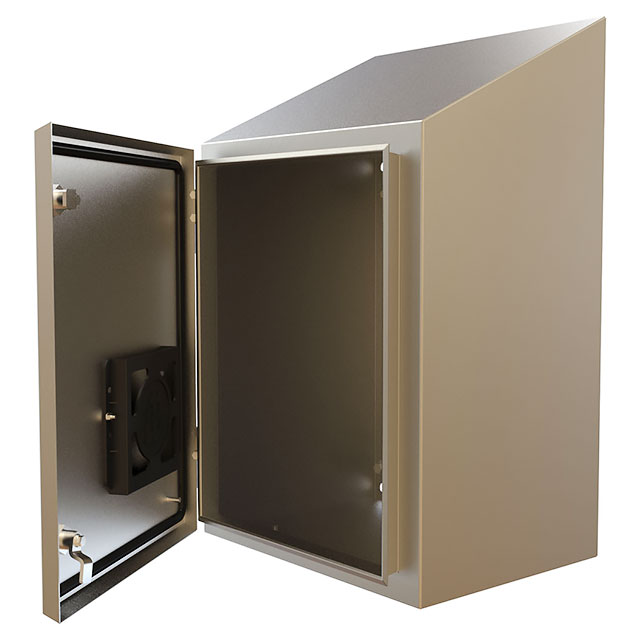

HWST24208SS

Active

Hammond Manufacturing

BOX S STL NATURAL 27.7"L X 20"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX S STL NATURAL 27.7"L X 20"W

Technical Specifications

Parameters and characteristics for this part

Specification	HWST24208SS

Area (L x W) [custom]	3574 cm˛
Area (L x W) [custom]	554 in˛
Color	Natural
Container Type	Box
Design	Hinged Door, Slanted Top
Features	Wall Mount, Stainless Steel Hinges
Height [z]	8 "
Height [z]	203.2 mm
Ratings	NEMA 12, UL-508, IP66, NEMA 13, NEMA 4, NEMA 4X, NEMA 3R
Size / Dimension [x]	703.58 mm
Size / Dimension [x]	27.7 in
Size / Dimension [y]	20 in
Size / Dimension [y]	508 mm

Part	Features	Area (L x W) [custom]	Area (L x W) [custom]	Color	Ratings	Container Type	Design	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing HWST24208SS	Stainless Steel Hinges Wall Mount	3574 cm˛	554 in˛	Natural	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL-508	Box	Hinged Door Slanted Top	8 "	203.2 mm	20 in	703.58 mm	27.7 in	508 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1172.52

General part information

Box Metal, Stainless Steel Natural Hinged Door, Slanted Top 27.700" L x 20.000" W (703.58mm x 508.00mm) X 8.000" (203.20mm)
