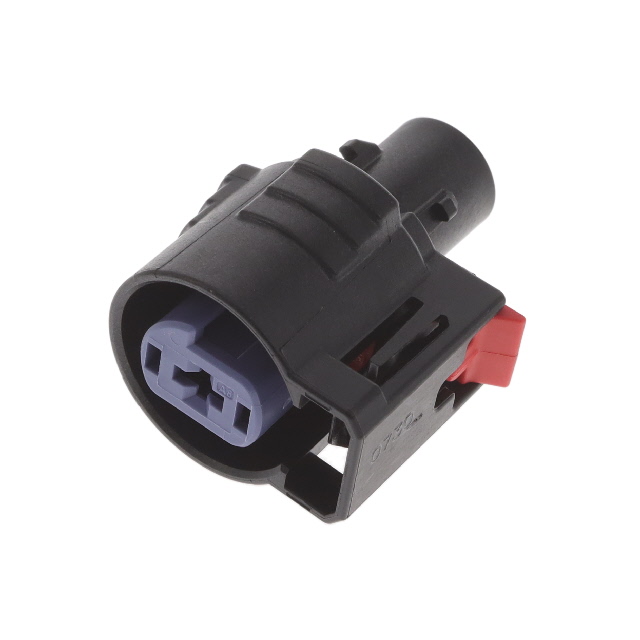

Specification	2098198-5

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-40 °C

AMP MCP Connector System Series

...

Part	Fastening Type	Insulation Color	Termination	Insulation Material	Connector Type	Row Spacing - Mating	Contact Shape	Contact Material	Contact Type	Contact Finish - Mating	Mounting Type	Insulation Height	Shrouding	Pitch - Mating	Contact Length - Mating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Style	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Number of Positions	Color	Pitch	Contact Termination	Row Spacing	Tool Type	For Use With/Related Products	Features	Contact Length - Post	Applications	Accessory Type	Note
TE Connectivity AMP Connectors 1-2236715-2	Push-Pull	Brown Purple	Solder	Polybutylene Terephthalate (PBT)	Header	0.157 in	Square	Copper Alloy	Male Pin	Tin	Right Angle Through Hole	1.112 in	Shrouded - 4 Wall	0.157 in	0.268 in	36 VAC	-40 °C	140 °C	Board Cable/Wire	4	All	Tin	UL94 V-0	36
TE Connectivity AMP Connectors 1-1718492-2				Glass Filled Polybutylene Terephthalate (PBT)	Plug				Tab		Panel Mount						-40 °C	120 °C		4				36	Purple	0.157 in	Crimp	0.165 in
TE Connectivity AMP Connectors 1718488-1	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	Receptacle				Female Socket		Free Hanging (In-Line)						-40 °C	120 °C		1				7	Natural	0.197 in	Crimp
TE Connectivity AMP Connectors 8-1579028-2																													Extraction Tool	Rectangular Contacts
TE Connectivity AMP Connectors 1-2141846-3	Lever Lock			Glass Filled Polybutylene Terephthalate (PBT)	Receptacle				Female Socket		Free Hanging (In-Line)						-40 °C	120 °C		3				25	Blue		Crimp
TE Connectivity AMP Connectors 9-966140-5	Latch Holder	Black	Solder	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	0.217 in	Rectangular	Copper Alloy	Tab	Tin	Right Angle Through Hole	1.012 in	Shrouded - 4 Wall	0.197 in		24 V	-40 °C	100 °C	Board Board or Cable	3	All		UL94 HB	6							Mounting Flange	0.118 in	Automotive General Purpose
TE Connectivity AMP Connectors 1-1718485-2																								36						MCP Series				Carrier
TE Connectivity AMP Connectors 936103-3																								2						MCP Series				Retainer
TE Connectivity AMP Connectors 284853-1				Glass Filled Nylon 6/6 Polyamide (PA66)	Receptacle				Female Socket		Free Hanging (In-Line)						-25 °C	105 °C		2				12	Black	0.165 in	Crimp	0.217 in							Contacts Not Included
TE Connectivity AMP Connectors 936294-2	Locking Ramp			Polybutylene Terephthalate (PBT)	Receptacle				Tab		Free Hanging (In-Line)									2				6	Black		Crimp
