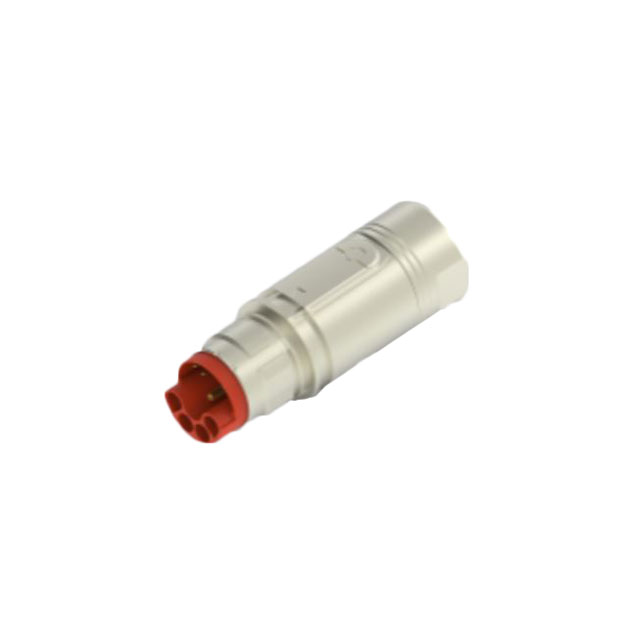

Specification	HKA008N00590100000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	Cable Clamp, Backshell, Connector
Includes Total Count	3 pcs
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	PE, Power
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-11
Shielding	Shielded
Type	For Male Pins

HKA00 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Note	Orientation	Shell Finish	Features	Mounting Type	Position Types	Number of Positions	Material Flammability Rating	Includes Total Count	Includes	Contact Shape	Shielding	Shell Size - Insert	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Fastening Type	Shell Material	Type	Insert Material
TE Intercontec HKA008N00590100000	-20 °C	130 °C	Contacts Not Included	Keyed	Nickel	Backshell Cable Clamp	Free Hanging (In-Line)	PE Power	11	UL94 V-0	3 pcs	Backshell Cable Clamp Connector	Circular	Shielded	M23-11	Receptacle Housing	Dust Tight Water Resistant Waterproof	IP66 IP67	Silver	Push-Twist	Zinc Die Cast	For Male Pins	Nylon 6/6 PA66 Polyamide
TE Intercontec HKA002N00590100000	-20 °C	130 °C	Contacts Not Included	Keyed	Nickel	Backshell Cable Clamp	Free Hanging (In-Line)	PE Power	11	UL94 V-0	3 pcs	Backshell Cable Clamp Connector	Circular	Shielded	M23-11	Receptacle Housing	Dust Tight Water Resistant Waterproof	IP66 IP67	Silver	Push-Twist	Zinc Die Cast	For Male Pins	Nylon 6/6 PA66 Polyamide
