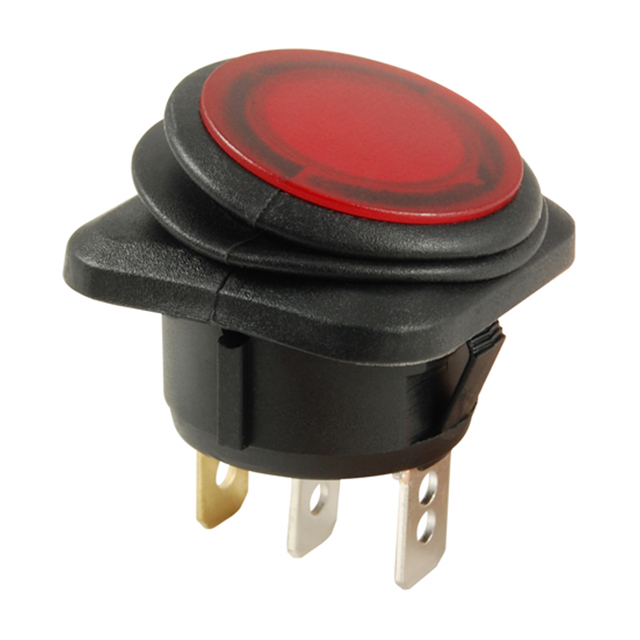

Specification	54-739W

Actuator Marking	No Marking
Actuator Type	Round, Illuminated
Circuit	SPST
Color	Red
Color - Actuator/Cap	Red
Current Rating	16 A
Illumination Type	Neon
Illumination Voltage (Nominal)	110 VAC
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

54-739 Series

Part	Switch Function	Color - Actuator/Cap	Circuit	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Actuator Marking	Illumination Voltage (Nominal)	Ingress Protection IP Rating	Ingress Protection Description	Actuator Type	Mounting Type	Illumination Type	Color	Termination Style
NTE Electronics, Inc 54-739W	On-Off	Red	SPST	125 V	85 °C	-25 °C	16 A	No Marking	110 VAC	IP65	Dust Tight Water Resistant	Illuminated Round	Panel Mount Snap-In	Neon	Red	Solder Lug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
