Q-2I02W0005108i

Active

Amphenol Custom Cable

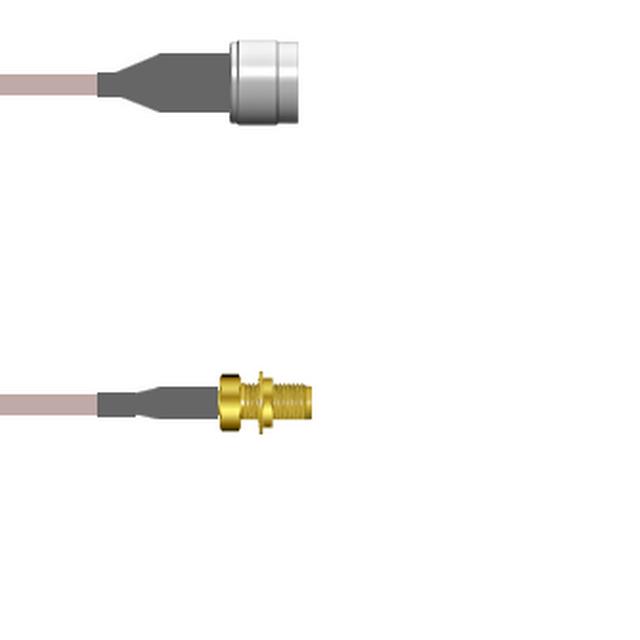

COAX CBL SMA TO N-TYPE 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I02W0005108i

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I02W0005108i

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2I02W0 Series

Part	1st Connector	Length	Length	Length	1st Connector Mounting Feature	2nd Connector Mounting Type	Overall Impedance	Color	Cable Type	Connector Impedance	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	1st Contact Gender	Features	Style	Frequency - Max [Max]	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-2I02W0005004F	SMA Jack	1200 mm	4 ft	48 in	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Copper	RG-316	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0005108i	SMA Jack	2.7 m	9 ft	108 in	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Copper	RG-316	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0005003M	SMA Jack	3 m	9.8 '	118.1 in	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Copper	RG-316	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0005.75M	SMA Jack	750 mm		29.53 "	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Copper	RG-316	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0003.25M	SMA Jack				Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Black	RG-174	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-2I02W0003084i	SMA Jack	2.1 m	7 ft	84 in	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Black	RG-174	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0003060i	SMA Jack	1.5 m	5 ft	5 '	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Black	RG-174	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0003006i	SMA Jack	152.4 mm		6 in	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Black	RG-174	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W00032.5M	SMA Jack	2.5 m	8.2 '	98.4 in	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Black	RG-174	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms
Amphenol Custom Cable Q-2I02W0003012i	SMA Jack	304.8 mm		12 "	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Black	RG-174	50 Ohms	Male	N-Type Plug	Panel Mount	Female	Shielded	SMA to N-Type	3 GHz	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 132.91
		25	$ 130.29
		50	$ 127.67
		100	$ 125.05
		250	$ 122.43

Description

General part information

Q-2I02W0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
