CONN JACK MALE 7POS SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol NEXUS Technologies

CONN JACK MALE 7POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MAJ-17-00

Applications	Communication Systems, Military, Audio, Video
Color	Silver
Connector Type	Jack, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	0.5 A
Fastening Type	Bayonet Lock
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Passivated
Shell Material	Stainless Steel
Shielding	Unshielded
Voltage Rating	60 VDC

CONN JACK MALE 7POS SOLDER CUP

Part	Shell Material	Primary Material	Applications	Contact Finish - Mating	Shielding	Number of Positions	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Fastening Type	Current Rating (Amps)	Orientation	Mounting Feature	Voltage Rating	Connector Type	Contact Material	Color
Amphenol NEXUS Technologies MAJ-17-00	Stainless Steel	Metal	Audio, Communication Systems, Military, Video	Gold	Unshielded	7	Passivated	85 °C	-55 °C	Thermoplastic	Bayonet Lock	0.5 A	Keyed	Bulkhead - Front Side Nut	60 VDC	Jack, Male Pins	Brass	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

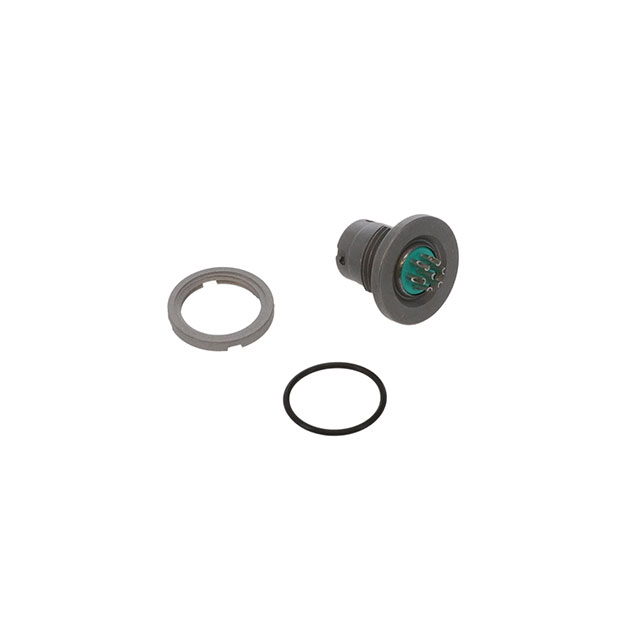

7 Position Circular Connector Jack, Male Pins Solder Cup
