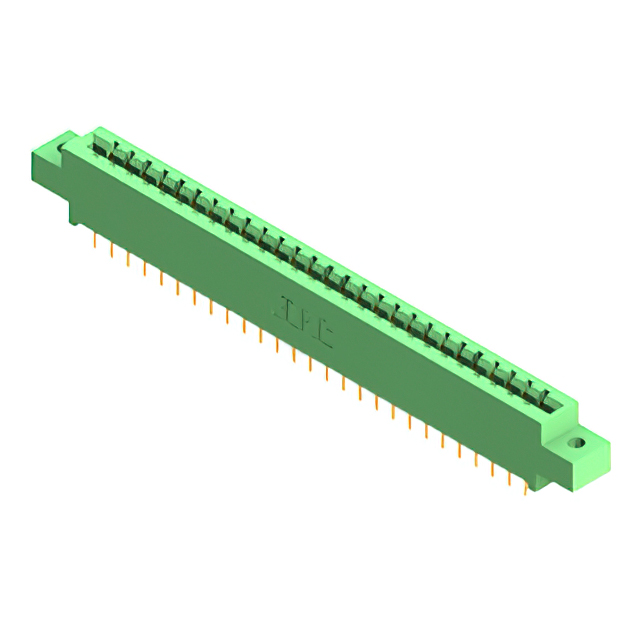

337-054-524-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-054-524-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-054-524-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-054 Series
...
| Part | Read Out | Gender | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Color | Termination | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Type | Contact Material | Number of Positions/Bay/Row [custom] | Material - Insulation | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole Right Angle | Green | Wire Wrap | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | Board Edge Straddle Mount | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | Card Extender | |||||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole | Green | Wire Wrap | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | Through Hole | Green | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Green | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | Card Extender | ||||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | Through Hole | Green | Wire Wrap | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | |||||
EDAC Inc. | Dual | Female | 2 | -40 °C | 105 ░C | Through Hole | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Cantilever | Copper Alloy | 27 | Polyester Thermoplastic | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 54 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.97 | |
Description
General part information
337-054 Series
54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
