142-10-314-00-591000

Active

Mill-Max Manufacturing Corp.

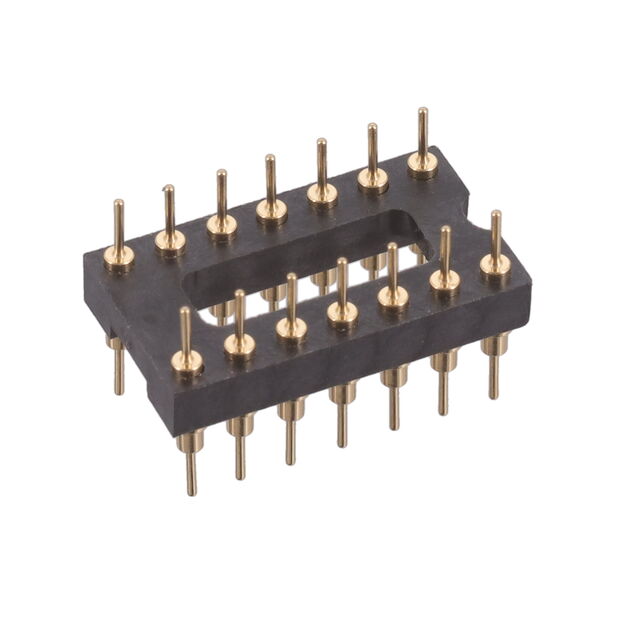

CONN HDR DIP POST 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

142-10-314-00-591000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 14POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	142-10-314-00-591000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Type	Post, Extended
Mounting Type	Through Hole
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	0.3 in
Row Spacing	7.62 mm
Termination	Solder

142-10 Series

Part	Row Spacing	Row Spacing	Connector Type	Number of Rows	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Contact Type	Mounting Type	Number of Positions
Mill-Max Manufacturing Corp. 142-10-314-00-592000	0.3 in	7.62 mm	DIL - Header DIP	2	Gold	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-318-00-594000	0.3 in	7.62 mm	DIL - Header DIP	2	Gold	18	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-314-00-591000	0.3 in	7.62 mm	DIL - Header DIP	2	Gold	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-320-00-592000	0.3 in	7.62 mm	DIL - Header DIP	2	Gold	20	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-624-00-592000	0.6 in	15.24 mm	DIL - Header DIP	2	Gold	24	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-316-00-594000	0.3 in	7.62 mm	DIL - Header DIP	2	Gold		2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole	16
Mill-Max Manufacturing Corp. 142-10-624-00-594000	0.6 in	15.24 mm	DIL - Header DIP	2	Gold	24	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-316-00-592000	0.3 in	7.62 mm	DIL - Header DIP	2	Gold		2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole	16
Mill-Max Manufacturing Corp. 142-10-632-00-591000	0.6 in	15.24 mm	DIL - Header DIP	2	Gold		2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole
Mill-Max Manufacturing Corp. 142-10-628-00-592000	0.6 in	15.24 mm	DIL - Header DIP	2	Gold	28	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	Black	Post Extended	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 18.32
		28	$ 15.05
		112	$ 13.08
		504	$ 11.95

Description

General part information

142-10 Series

14 Position DIP, DIL - Header Connector Post, Extended Gold
