638-026-232-067

Active

EDAC Inc.

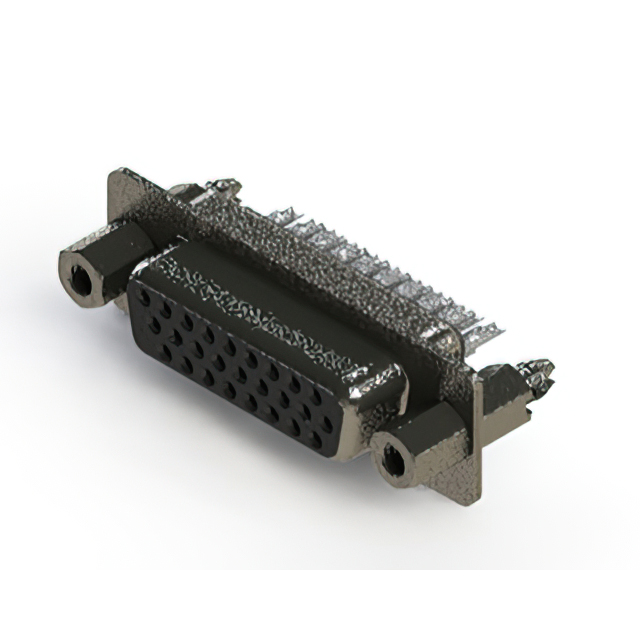

D SUBMINIATURE CONNECTOR, 26 CONTACT(S), FEMALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-026-232-067

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 26 CONTACT(S), FEMALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-026-232-067

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density

638-026 Series

...

Part	Current Rating (Amps)	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Contact Material	Mounting Type	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Dielectric Material	Material Flammability Rating	Number of Rows	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Flange Feature	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 638-026-631-278	3 A	Signal	0.76 Ám	30 Áin	26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Shielded	Black	-55 °C	125 °C	D-Sub High Density	4-40
EDAC Inc. 638-026-231-073	3 A	Signal			26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Shielded	Black	-55 °C	125 °C	D-Sub High Density	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Flash
EDAC Inc. 638-026-231-058	3 A	Signal			26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Shielded	Black	-55 °C	85 °C	D-Sub High Density	4-40	Nickel Plated Steel	Flash
EDAC Inc. 638-026-330-063	3 A	Signal	0.38 µm	15 µin	26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Shielded	Black	-55 °C	125 °C	D-Sub High Density	Female Screwlock (4-40) Mating Side	Nickel Plated Steel
EDAC Inc. 638-026-332-246	3 A	Signal	0.38 µm	15 µin	26	Receptacle Female Sockets	Copper Alloy	Free Hanging (In-Line)	Gold	2	(DA A) High Density		Polyester Thermoplastic	UL94 V-0	3	Board Lock Shielded	Black	-55 °C	85 °C	D-Sub High Density	Housing/Shell (4-40)
EDAC Inc. 638-026-330-068	3 A	Signal	0.38 µm	15 µin	26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Shielded	Black	-55 °C	125 °C	D-Sub High Density	4-40	Nickel Plated Steel
EDAC Inc. 638-026-232-067	3 A	Signal			26	Receptacle Female Sockets	Copper Alloy	Free Hanging (In-Line)	Gold	2	(DA A) High Density		Polyester Thermoplastic	UL94 V-0	3	Board Lock Shielded	Black	-55 °C	125 °C	D-Sub High Density	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Flash
EDAC Inc. 638-026-330-246	3 A	Signal	0.38 µm	15 µin	26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Board Lock Shielded	Black	-55 °C	85 °C	D-Sub High Density	Housing/Shell (4-40)
EDAC Inc. 638-026-331-057	3 A	Signal	0.38 µm	15 µin	26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Board Lock Shielded	Black	-55 °C	85 °C	D-Sub High Density	Female Screwlock (4-40) Mating Side	Nickel Plated Steel
EDAC Inc. 638-026-331-071	3 A	Signal	0.38 µm	15 µin	26	Receptacle Female Sockets	Copper Alloy	Through Hole	Gold	2	(DA A) High Density	Solder	Polyester Thermoplastic	UL94 V-0	3	Shielded	Black	-55 °C	125 °C	D-Sub High Density	Housing/Shell (Unthreaded)	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 4.67

Description

General part information

638-026 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
