152220-0110-GB

Active

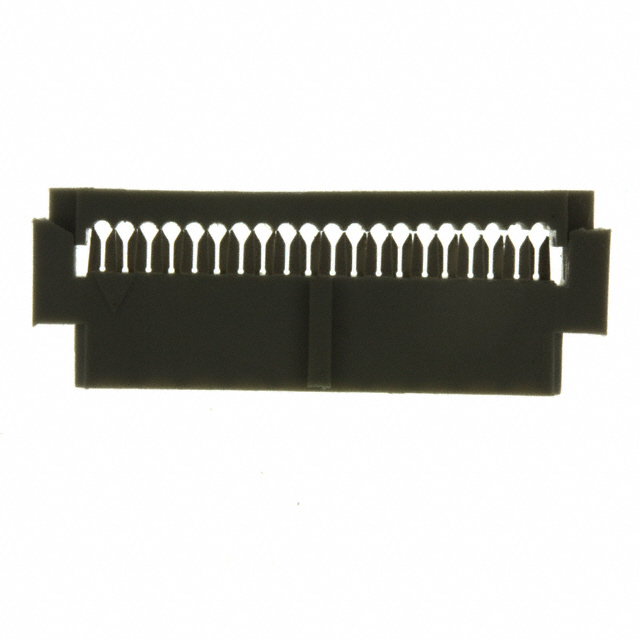

CONN RCPT 20POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN RCPT 20POS IDC 28AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152220-0110-GB	152220 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 µm
Contact Finish Thickness	30 Áin	15 - 30 µin
Contact Type	Female Socket	Female Socket
Features	Polarizing Key, Feed Through	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	20	20
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

CONN RCPT 20POS IDC 28AWG GOLD

Part	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Features	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Contact Finish	Number of Rows	Mounting Type	Wire Gauge	Connector Type	Contact Type	Number of Positions	Color
3M 152220-0100-GG	IDC	15 µin	0.38 µm	Ribbon Cable	Feed Through	0.079 in	2 mm	2 mm	0.079 in	Gold	2	Free Hanging (In-Line)	28 AWG	Receptacle	Female Socket	20	Gray
3M 152220-0110-GG	IDC	15 µin	0.38 µm	Ribbon Cable	Feed Through, Polarizing Key	0.079 in	2 mm	2 mm	0.079 in	Gold	2	Free Hanging (In-Line)	28 AWG	Receptacle	Female Socket	20	Gray
3M 152220-0110-GB	IDC	30 Áin	0.76 Ám	Ribbon Cable	Feed Through, Polarizing Key	0.079 in	2 mm	2 mm	0.079 in	Gold	2	Free Hanging (In-Line)	28 AWG	Receptacle	Female Socket	20	Gray
3M 152220-0103-GB	IDC	30 Áin	0.76 Ám	Ribbon Cable	Feed Through, Strain Relief	0.079 in	2 mm	2 mm	0.079 in	Gold	2	Free Hanging (In-Line)	28 AWG	Receptacle	Female Socket	20	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Receptacle Connector IDC Gold 28 AWG
