LTH-301-32
ActiveDiodes Inc
SENSOR OPT SLOT PHOTOTRANS MODUL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTH-301-32
ActiveDiodes Inc
SENSOR OPT SLOT PHOTOTRANS MODUL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTH-301-32 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 20 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Phototransistor |
| Package / Case | Module, PC Pins, Slot Type |
| Response Time | 4 µs |
| Sensing Distance | 15 mm |
| Sensing Distance | 0.591 " |
| Sensing Method | Through-Beam |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.77 | |
| 5 | $ 0.67 | |||
| 10 | $ 0.64 | |||
| 25 | $ 0.60 | |||
| 55 | $ 0.56 | |||
| 110 | $ 0.54 | |||
| 550 | $ 0.49 | |||
| 1045 | $ 0.47 | |||
| 5005 | $ 0.43 | |||
Description
General part information
LTH-301 Series

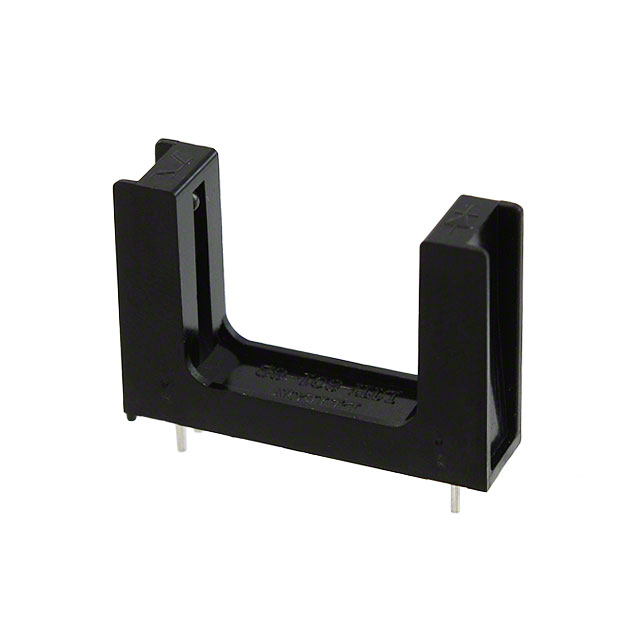

Optical Sensor Through-Beam 0.591" (15mm) Phototransistor Module, PC Pins, Slot Type
