C2462A.41.10

Active

Prysmian Group

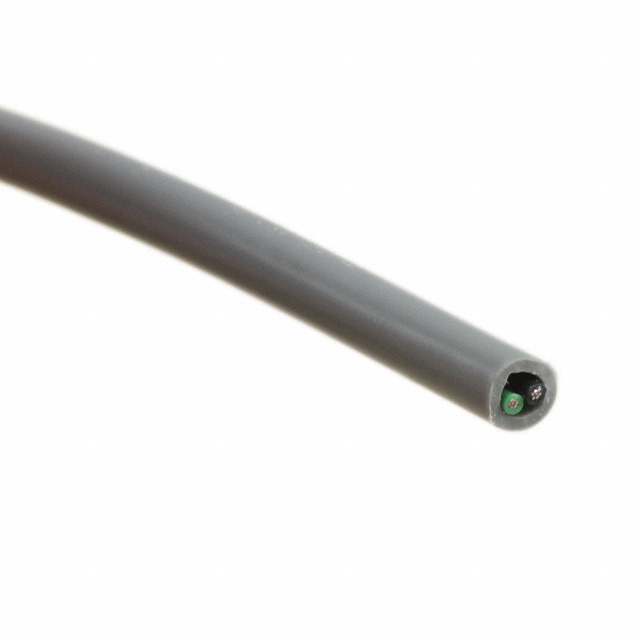

CABLE 3COND 24AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2462A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	4.14 mm
Jacket (Insulation) Diameter [diameter]	0.163 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Voltage	Number of Conductors	Conductor Insulation	Wire Gauge	Length	Length	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Usage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]
Prysmian Group C2462A.41.10	4.14 mm	0.163 in	Gray	Copper Annealed Tinned	300 V	3	Poly-Vinyl Chloride (PVC)	24 AWG	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	32 AWG	7	ASTM B-33	Communication Control	Multi-Conductor	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 311.45

General part information

3 Conductor Multi-Conductor Cable Gray 24 AWG 1000.0' (304.8m)
