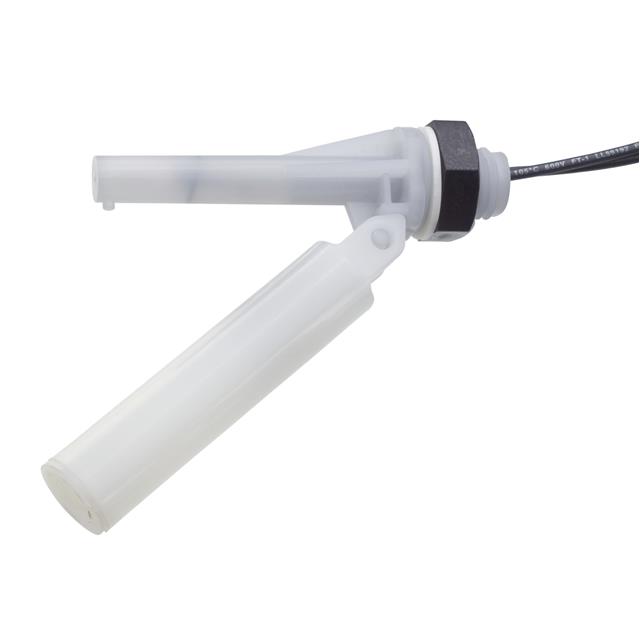

RSF34W100RF

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF34W100RF

Current	5 A
Material - Housing & Prism	Polypropylene (PP)
Minimum Liquid Specific Gravity [Min]	0.8
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Output Configuration	SPST-NO
Switch Actuation Level	52 mm
Switch Actuation Level	2.047 in
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

Part	Current	Type	Output Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Actuation Level	Switch Actuation Level	Material - Housing & Prism	Minimum Liquid Specific Gravity [Min]	Voltage Rating
Sensata Technologies RSF34W100RF	5 A	Liquid	SPST-NO	M16x2 Thread Panel Mount	100 °C	-20 C	52 mm	2.047 in	Polypropylene (PP)	0.8	120 VDC 240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Liquid Level Sensor Switch (Single Float) SPST-NO Output Panel Mount, M16x2 Thread
