Q-2C0140003084i

Active

Amphenol Custom Cable

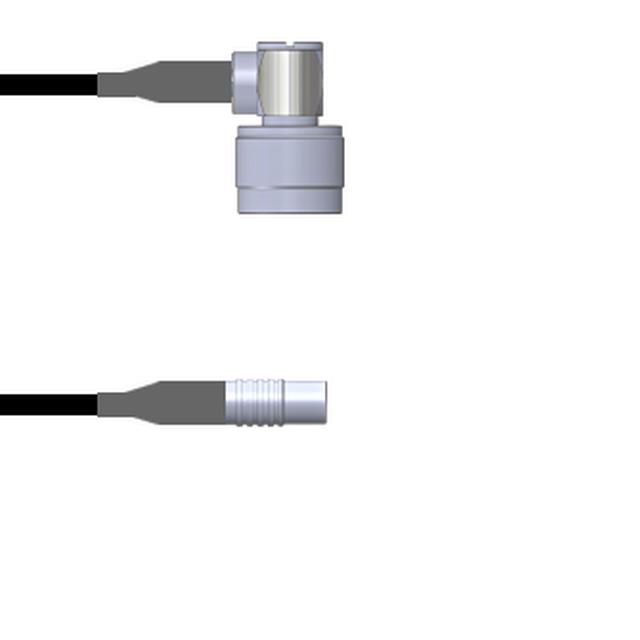

CBL ASSY MCX-NTYPE JACK-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C0140003084i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JACK-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C0140003084i

1st Connector	MCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2C0140 Series

Part	Overall Impedance	Style	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	Color	1st Connector	Cable Type	Frequency - Max [Max]	Length	Length	Length	Features	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-2C0140003084i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz	84 in	2.1 m	7 ft	Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C0140003012i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz	12 "	304.8 mm		Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C0140003024i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz	24 "	609.6 mm		Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C0140003018i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz				Shielded	N-Type Plug Right Angle	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C0140005003i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	MCX Jack	RG-316	6000 MHz	3 in	76.2 mm		Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C01400031.5M	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz	59.1 in	1.5 m	4.9 ft	Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C01400052.5M	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	MCX Jack	RG-316	6000 MHz	98.4 in	2.5 m	8.2 '	Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C0140005108i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	MCX Jack	RG-316	6000 MHz	108 in	2.7 m	9 ft	Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C01400030.5M	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz	19.69 "	50 cm		Shielded	N-Type Plug Right Angle
Amphenol Custom Cable Q-2C0140003108i	50 Ohms	MCX to N-Type	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	MCX Jack	RG-174	6000 MHz	108 in	2.7 m	9 ft	Shielded	N-Type Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 116.17
		25	$ 113.95
		50	$ 111.72
		100	$ 109.49
		250	$ 107.27

Description

General part information

Q-2C0140 Series

Cable Assembly Coaxial MCX to N-Type RG-174 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
