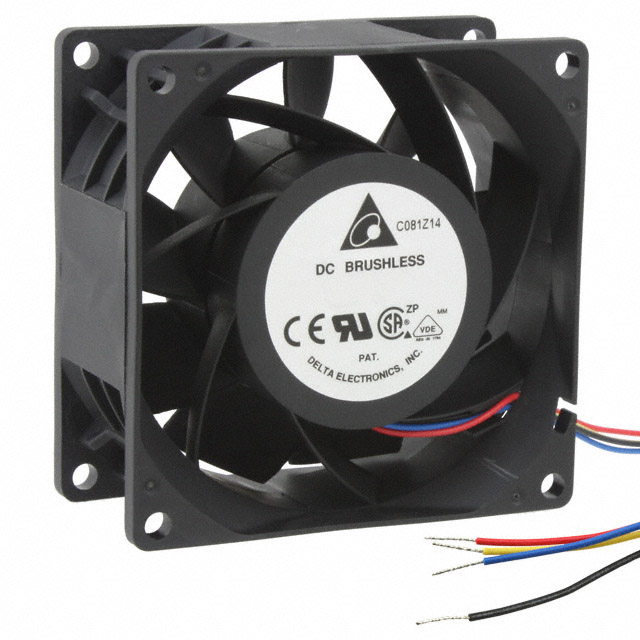

THB0848BEB51

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THB0848BEB51

Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.7 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	70 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	33.6 W
RPM	15000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	1132 Pa
Static Pressure	4.543 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	196.86 g
Weight	0.434 lb
Width [y]	38 mm

FAN AXIAL 80X38MM 48VDC WIRE

Part	Power (Watts)	Width [y]	Weight	Weight	Voltage - Rated [custom]	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Approval Agency	RPM	Current Rating (Amps)	Bearing Type	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Noise	Termination	Features	Fan Type
Delta Electronics THB0848BEB51	33.6 W	38 mm	196.86 g	0.434 lb	48 VDC	70000 Hrs	Plastic	60 V	36 VDC	1132 Pa	4.543 in H2O	CE, cURus, TUV	15000 RPM	0.7 A	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	70 dB(A)	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 127.5 CFM (3.57m³/min) 4 Wire Leads
