Specification	4-640605-6

Cable Termination	IDC
Color	Yellow
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	80 µin
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	1
Pitch	0.156 in
Wire Gauge	20 AWG
Wire Type	Ribbon Cable, Discrete

640605 Series

Part	Wire Gauge	Number of Positions	Number of Rows	Connector Type	Contact Finish	Pitch	Mounting Type	Contact Finish Thickness	Contact Type	Features	Color	Cable Termination	Wire Type

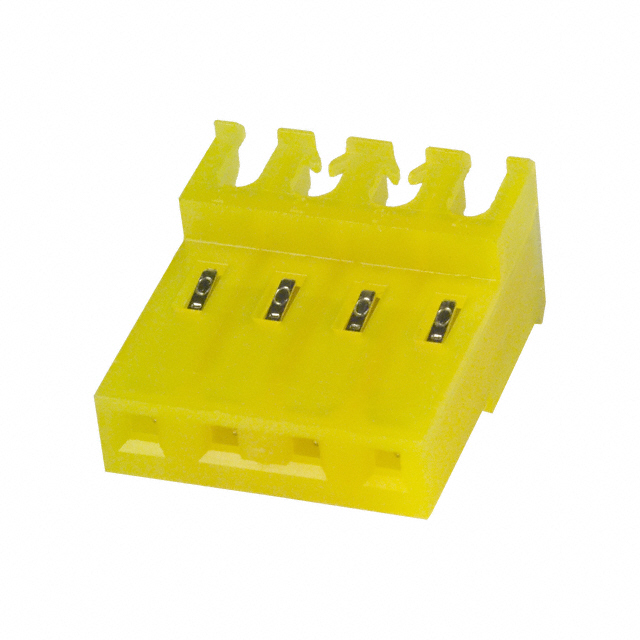

TE Connectivity AMP Connectors 3-640605-4	20 AWG	4	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable

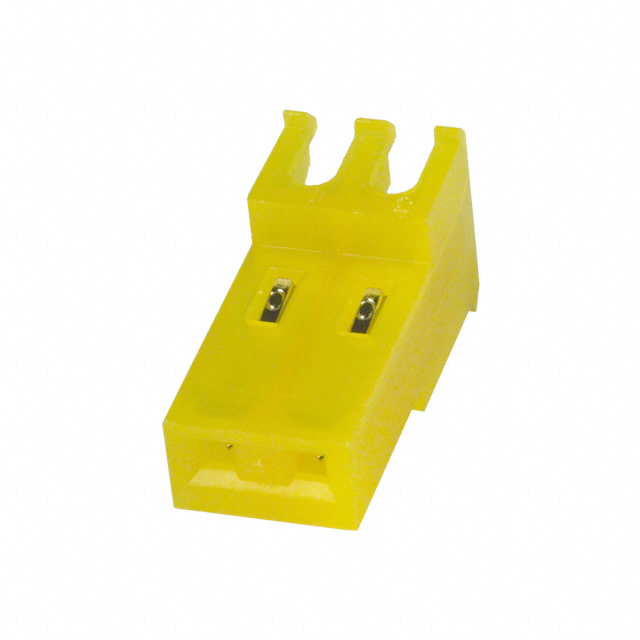

TE Connectivity AMP Connectors 3-640605-2	20 AWG	2	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable
TE Connectivity AMP Connectors 640605-2	20 AWG	2	1	Receptacle	Tin-Lead	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable
TE Connectivity AMP Connectors 4-640605-3	20 AWG	13	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable
TE Connectivity AMP Connectors 4-640605-7	20 AWG	17	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable

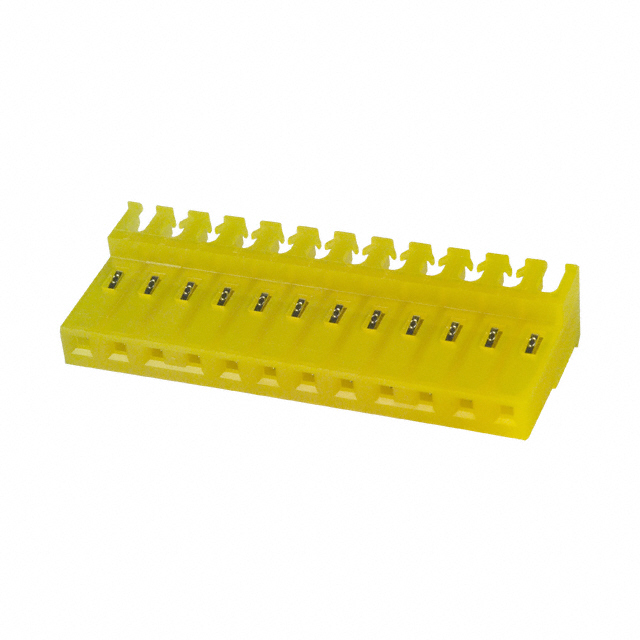

TE Connectivity AMP Connectors 1-640605-2	20 AWG	12	1	Receptacle	Tin-Lead	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable
TE Connectivity AMP Connectors 4-640605-4	20 AWG	14	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable

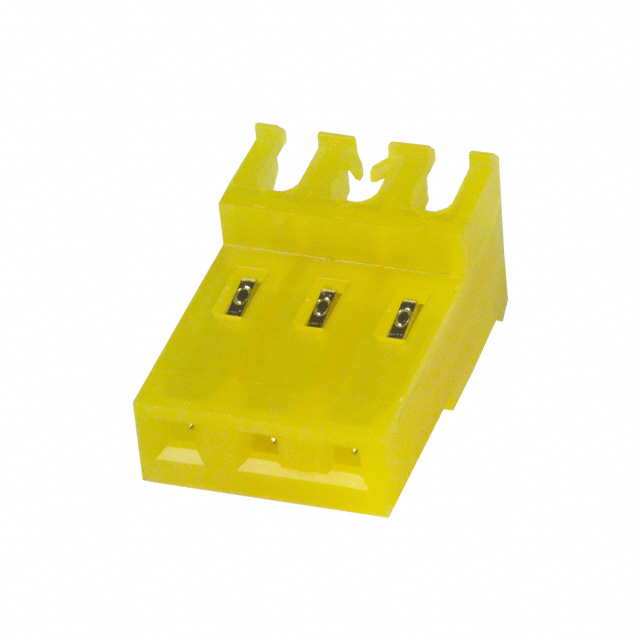

TE Connectivity AMP Connectors 3-640605-3	20 AWG	3	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable

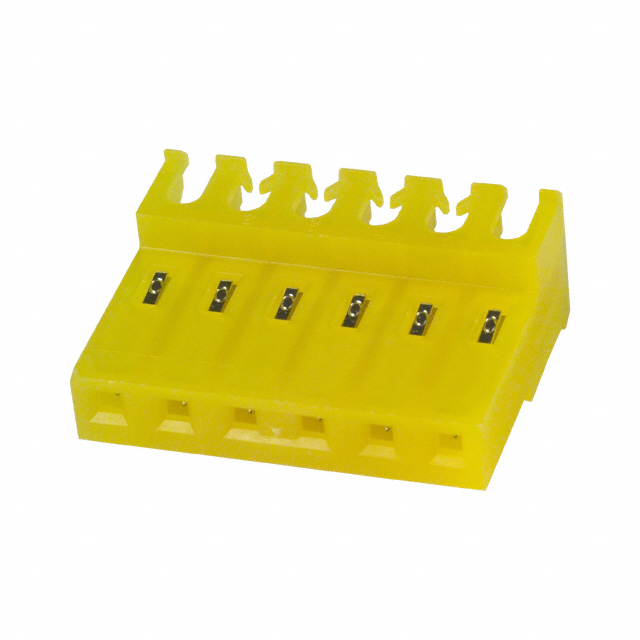

TE Connectivity AMP Connectors 3-640605-6	20 AWG	6	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable
TE Connectivity AMP Connectors 4-640605-6	20 AWG	16	1	Receptacle	Tin	0.156 in	Free Hanging (In-Line)	80 µin	Female Socket	Feed Through	Yellow	IDC	Discrete Ribbon Cable
