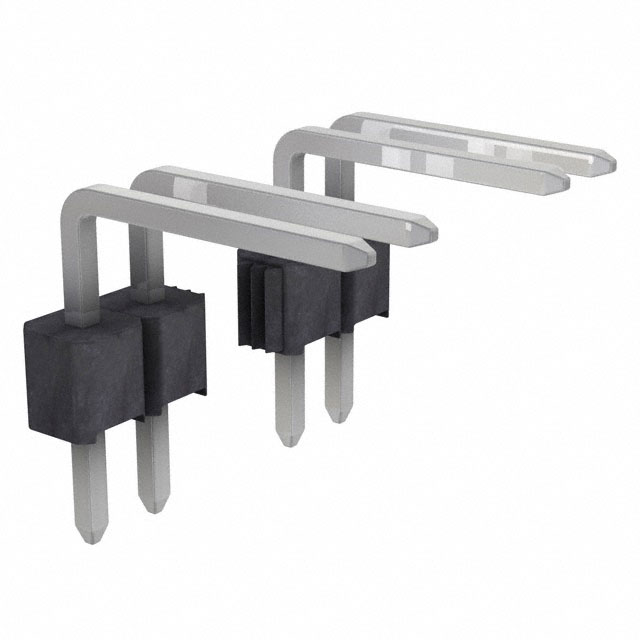

929500-01-20-RK

Active

3M (TC)

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929500-01-20-RK

Active

3M (TC)

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929500-01-20-RK

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929500 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Material Flammability Rating	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Mounting Type	Shrouding	Contact Material	Termination	Current Rating (Amps)	Insulation Material	Number of Positions	Contact Type	Number of Positions Loaded	Contact Finish - Post	Number of Positions
3M (TC) 929500-01-15	2.54 çm	100 çin	Tin-Lead	-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	15	Male Pin	All
3M (TC) 929500-01-20-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	20	Male Pin	All	Tin
3M (TC) 929500-01-13-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	13	Male Pin	All	Tin
3M (TC) 929500-01-16	2.54 çm	100 çin	Tin-Lead	-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester		Male Pin	All		16
3M (TC) 929500-01-28	2.54 çm	100 çin	Tin-Lead	-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	28	Male Pin	All
3M (TC) 929500-01-05-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)		Male Pin	All	Tin
3M (TC) 929500-01-34-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	34	Male Pin	All	Tin
3M (TC) 929500-01-22-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	22 positions	Male Pin	All	Tin
3M (TC) 929500-01-09-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	9	Male Pin	All	Tin
3M (TC) 929500-01-03-RK	5.08 µm	200 µin		-40 °C	105 ░C	7.49 mm	0.295 in	Push-Pull	UL94 V-0	Black	0.13 in	3.3 mm	1	Square	Breakaway Header	0.1 in	2.54 mm	Through Hole Right Angle	Unshrouded	Copper Alloy	Solder	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)		Male Pin	All	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.32
		10	$ 2.02
		100	$ 1.81
		500	$ 1.51
		1000	$ 1.29
		5000	$ 1.15

Description

General part information

929500 Series

Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
