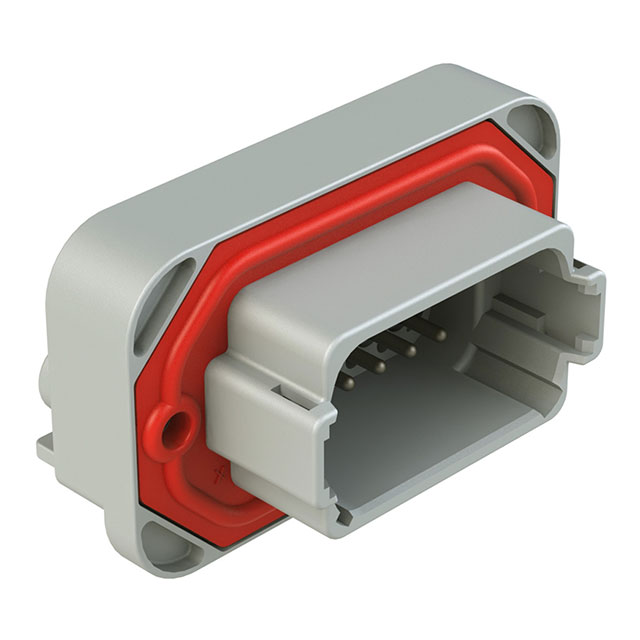

AT13-12PA-BM03
ActiveAmphenol Sine Systems Corp
CONN HEADER R/A 12POS
Deep-Dive with AI
Search across all available documentation for this part.
AT13-12PA-BM03
ActiveAmphenol Sine Systems Corp
CONN HEADER R/A 12POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT13-12PA-BM03 |
|---|---|
| Applications | Industrial, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Holder |
| Features | Board Guide, Mating Flange, Mounting Flange |
| Ingress Protection | IP67 |
| Insulation Color | Gray |
| Insulation Height | 1.39 in |
| Insulation Height | 35.3 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing - Mating | 0.25 in |
| Row Spacing - Mating | 6.35 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
AT13 Series
...
| Part | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Insulation Material | Voltage Rating | Number of Positions | Number of Positions Loaded | Mounting Type | Termination | Contact Type | Contact Shape | Insulation Color | Features | Shrouding | Insulation Height | Insulation Height | Connector Type | Current Rating (Amps) | Applications | Style | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Rows | Ingress Protection | Contact Finish - Post | For Use With/Related Products | Accessory Type | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 0.25 in | 6.35 mm | 0.122 " | 3.1 mm | Thermoplastic | 250 VDC | 6 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Gray | Board Guide Mating Flange Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Tin | ||||||
Amphenol Sine Systems Corp | 1 | AT Series | Plug Sealing | |||||||||||||||||||||||||||||||
Amphenol Sine Systems Corp | 4.9 mm | 0.114 in | 2.9 mm | Thermoplastic | 250 VDC | 18 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Black | Board Guide Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 3 | IP68 IP69K | 0.193 " | 4.7 mm | 0.185 " | |||||
Amphenol Sine Systems Corp | 4.9 mm | 0.114 in | 2.9 mm | Thermoplastic | 250 VDC | 18 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Black | Board Guide Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 3 | IP68 IP69K | 0.193 " | 4.7 mm | 0.185 " | Gold | ||||
Amphenol Sine Systems Corp | 0.25 in | 6.35 mm | 0.122 " | 3.1 mm | Thermoplastic | 250 VDC | 12 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Black | Board Guide Mating Flange Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Tin | ||||||
Amphenol Sine Systems Corp | 0.25 in | 6.35 mm | 0.122 " | 3.1 mm | Thermoplastic | 250 VDC | 12 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Gray | Board Guide Mating Flange Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Tin | ||||||
Amphenol Sine Systems Corp | 0.25 in | 6.35 mm | 0.122 " | 3.1 mm | Thermoplastic | 250 VDC | 12 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Gray | Board Guide Mating Flange Mounting Flange Potting Wall | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Gold | Gold | |||||
Amphenol Sine Systems Corp | 9.1 mm | 0.122 " | 3.1 mm | Thermoplastic | 250 VDC | 8 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Green | Board Guide Mating Flange Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Gold | 0.358 in | Gold | |||||
Amphenol Sine Systems Corp | 9.1 mm | 0.122 " | 3.1 mm | Thermoplastic | 12 | All | Panel Mount Right Angle Through Hole | Solder | Male Pin | Circular | Black | Board Guide Mounting Flange | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Tin | 0.358 in | ||||||||
Amphenol Sine Systems Corp | 9.1 mm | 0.122 " | 3.1 mm | Thermoplastic | 250 VDC | 6 | All | Through Hole Right Angle | Solder | Male Pin | Circular | Blue | Board Guide Mating Flange Mounting Flange Potting Wall | Shrouded - 4 Wall | 1.39 in | 35.3 mm | Receptacle | 13 A | Automotive Industrial | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Latch Holder | 2 | IP67 | Tin | 0.358 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.81 | |
| 10 | $ 7.81 | |||
| 25 | $ 7.51 | |||
| 40 | $ 7.21 | |||
| 80 | $ 7.05 | |||
Description
General part information
AT13 Series
Connector Header Through Hole, Right Angle 12 position
