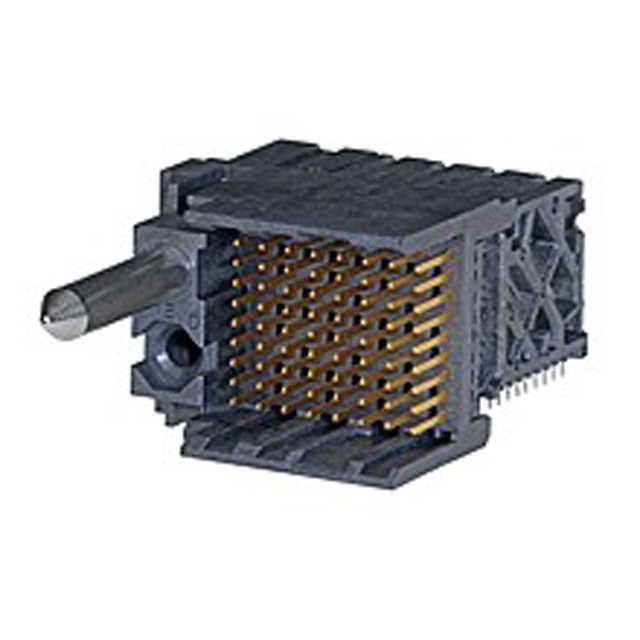

Specification	0764103804

Color	Black
Connector Style	Guide Left, Impact
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	24
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	8
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076410 Series

Part	Connector Style	Number of Columns	Contact Finish Thickness	Mounting Type	Termination	Color	Differential Pairs (Typical)	Connector Type	Number of Positions Loaded	Number of Rows	Contact Finish	Number of Positions	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Pitch	Features
Molex 0764101607	Impact	16	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	48	Header Male Pins	All	9	Gold	144	UL94 V-0	-55 °C	85 °C	30 V
Molex 0764103804	Guide Left Impact	8	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	24	Header Male Pins	All	9	Gold	72	UL94 V-0	-55 °C	85 °C	30 V	0.053 in	Board Guide

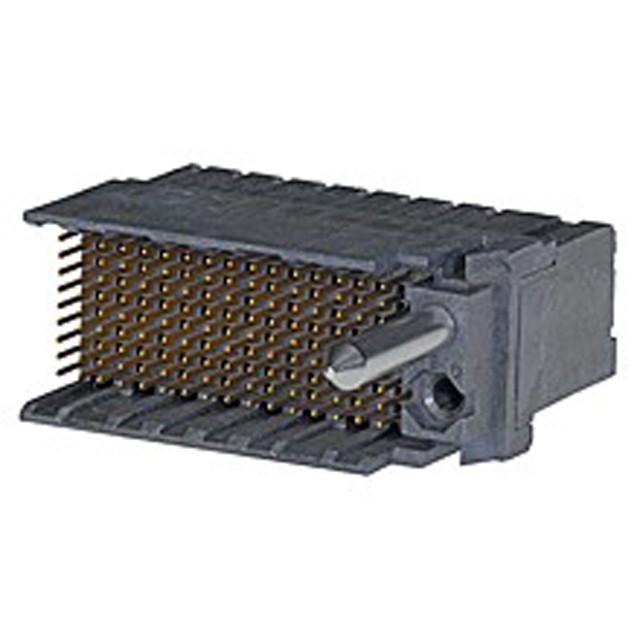

Molex 0764105608	Guide Right Impact	16	10 Ąin	Board Edge Right Angle Through Hole	Press-Fit	Black	48	Header Male Pins	All	9	Gold	144	UL94 V-0	-55 °C	85 °C	30 V	0.053 in	Board Guide
Molex 0764101827	Impact	8	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	24	Header Male Pins	All	9	Gold	72	UL94 V-0	-55 °C	85 °C	30 V

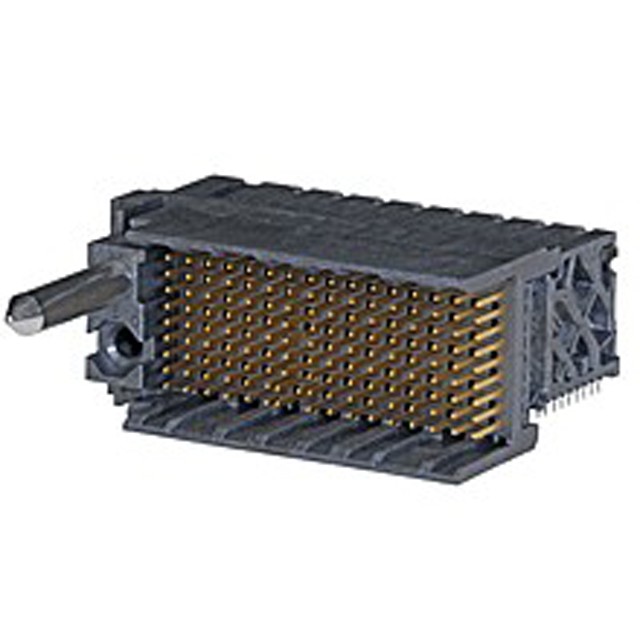

Molex 0764103604

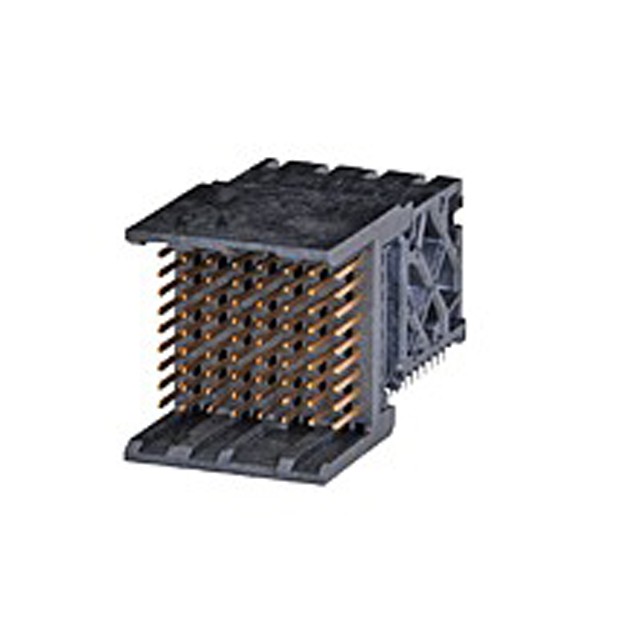

Molex 0764101808	Impact	8	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	24	Header Male Pins	All	9	Gold	72	UL94 V-0	-55 °C	85 °C	30 V
Molex 0764105607	Guide Right Impact	16	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	48	Header Male Pins	All	9	Gold	144	UL94 V-0	-55 °C	85 °C	30 V	0.053 in	Board Guide
Molex 0764101134	Impact	10	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	30	Header Male Pins	All	9	Gold	90	UL94 V-0	-55 °C	85 °C	30 V

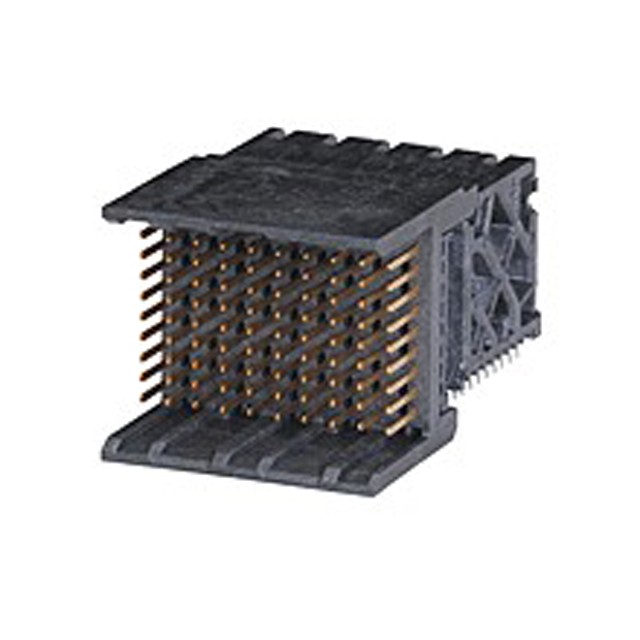

Molex 0764101104	Impact	10	30 µin	Board Edge Right Angle Through Hole	Press-Fit	Black	30	Header Male Pins	All	9	Gold	90	UL94 V-0	-55 °C	85 °C	30 V

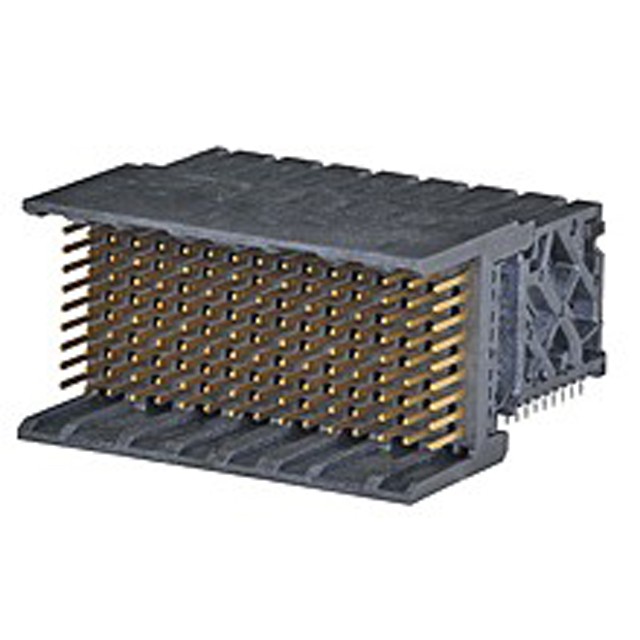

Molex 0764101604
