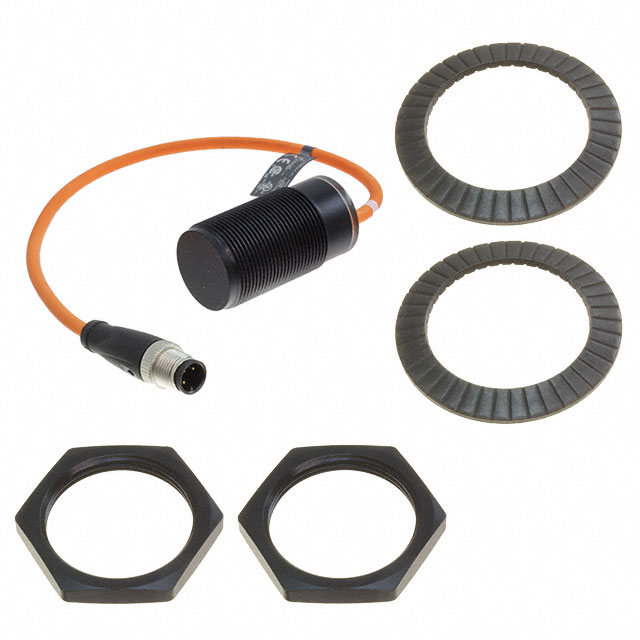

NMB8-30GM55-Z3-C-FE-300MM-V1
ActivePepperl+Fuchs, Inc.
INDUCTIVE SEN 8MM NO
NMB8-30GM55-Z3-C-FE-300MM-V1
ActivePepperl+Fuchs, Inc.
INDUCTIVE SEN 8MM NO
Description
General part information
NMB8-30 Series
INDUCTIVE SEN 8MM NO
Technical Specifications
Parameters and characteristics for this part
| Specification | NMB8-30GM55-Z3-C-FE-300MM-V1 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | SCR-NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.315 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable with Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 6 V |
