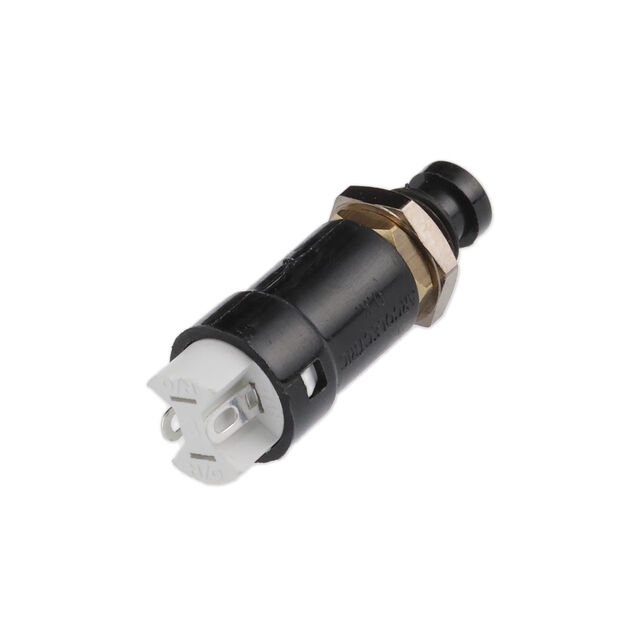

T0918SOAAG

Active

BULGIN LIMITED

PUSHBUTTON SW, SPST-NC, 0.5A/250V, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BULGIN LIMITED

PUSHBUTTON SW, SPST-NC, 0.5A/250V, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T0918SOAAG

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Current Rating (Amps)	500 mA
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	7.1 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

PUSHBUTTON SW, SPST-NC, 0.5A/250V, PANEL ROHS COMPLIANT: YES

Part	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Marking	Switch Function	Voltage Rating - AC	Current Rating (Amps)	Circuit	Termination Style	Actuator Type	Type
BULGIN LIMITED T0918SOAAG	Panel Mount, Rear	7.1 mm	No Marking	On-Mom	250 V	500 mA	SPST-NC	Solder Lug	Button, Round	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
