96576.0

Active

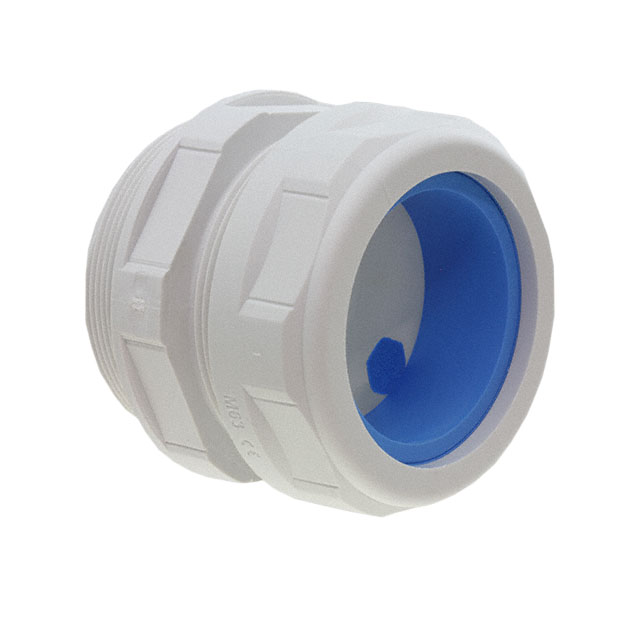

Pflitsch

CABLE FEED 35.05-41.91MM M50

Search across all available documentation for this part.

Active

Pflitsch

CABLE FEED 35.05-41.91MM M50

Technical Specifications

Parameters and characteristics for this part

Specification	96576.0

Color	Light Gray
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max]	41.91 mm
Outside Cable Diameter (Max) [Max]	1.65 in
Outside Cable Diameter (Min) [Min] [diameter]	35.05 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.38 "
Panel Hole Size	50 mm
Panel Hole Size	1.969 in
Thread Length	0.39 in
Thread Length	9.91 mm
Thread Size	M50x1.5
Type	Cable Feedthrough

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Thread Size	Color	Operating Temperature [Max]	Operating Temperature [Min]	Panel Hole Size	Panel Hole Size	Type	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes
Pflitsch 96576.0	35.05 mm	1.38 "	Polyamide (PA) Nylon	M50x1.5	Light Gray	100 °C	-20 C	50 mm	1.969 in	Cable Feedthrough	0.39 in	9.91 mm	41.91 mm	1.65 in	IP68 - Dust Tight Waterproof; NEMA 4X
Pflitsch 96576.7/15	31 mm	1.22 in	Stainless Steel	M50x1.5	Silver	500 °C	-60 °C	50 mm	1.969 in	Cable Feedthrough						42 mm	1.654 in	Sealing Ring
Pflitsch 96576.7	35.05 mm	1.38 "	Stainless Steel	M50x1.5	Silver	500 °C	-60 °C	50 mm	1.969 in	Cable Feedthrough	0.39 in	9.91 mm	41.91 mm	1.65 in	IP68 - Dust Tight Waterproof; NEMA 4X			Sealing Ring
Pflitsch 96576.6	35.05 mm	1.38 "	Brass Nickel Plated	M50x1.5	Silver	300 °C	-40 °C	50 mm	1.969 in	Cable Feedthrough	0.39 in	9.91 mm	41.91 mm	1.65 in	IP68 - Dust Tight Waterproof; NEMA 4X			Sealing Ring
Pflitsch 96576.6/15	31 mm	1.22 in	Brass Nickel Plated	M50x1.5	Silver	300 °C	-40 °C	50 mm	1.969 in	Cable Feedthrough						42 mm	1.654 in	Sealing Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Feedthrough Polyamide (PA), Nylon M50x1.5 Light Gray
