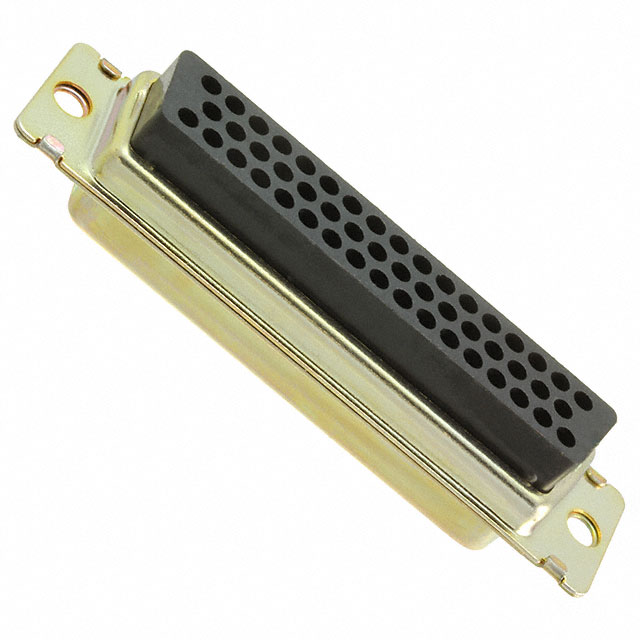

M24308/2-5Z

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB RCPT 50POS CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB RCPT 50POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/2-5Z

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	5
Termination	Crimp

CONN D-SUB RCPT 50POS CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Contact Material	Dielectric Material	Number of Rows	Connector Type	Shell Size, Connector Layout	Flange Feature	Color	Shell Material, Finish	Current Rating (Amps)	Connector Style	Termination	Contact Finish	Mounting Type
TE Connectivity Aerospace, Defense and Marine M24308/2-5Z	-55 °C	125 °C	50	Signal	Copper Alloy	Polyester	3	Receptacle, Female Sockets	5	Housing/Shell (Unthreaded)	Black	Steel, Yellow Chromate Plated Zinc	7.5 A	D-Sub	Crimp	Gold	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
