RA4-2A-DC-2-GL

Active

Switch Components

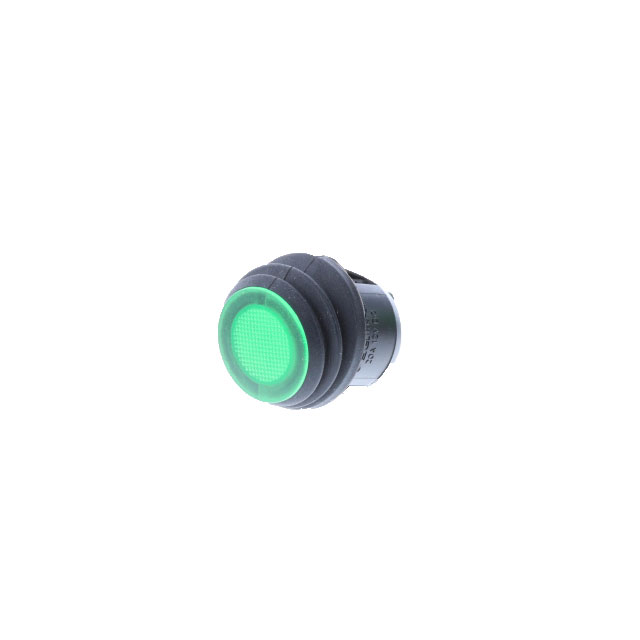

SWITCH ROCKER DPST 20A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER DPST 20A 14V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RA4-2A-DC-2-GL	RA4-2A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round, Round - Illuminated
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	DPST	DPST
Color - Actuator/Cap	Green	Black, Red, Green
Current Rating (Amps)	20 A	10 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	LED, Green	Red, LED, Green
Illumination Voltage (Nominal)	14 VDC	14 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	14 V	14 - 28 V

SWITCH ROCKER DPST 10A 125V

Part	Color - Actuator/Cap	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Ingress Protection	Voltage Rating - AC	Approval Agency	Electrical Life	Mechanical Life	Termination Style	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color
Switch Components RA4-2A-DC-2-B	Black	No Marking	-25 °C	85 °C	28 V	Round	10 A, 16 A	On-Off	20.2 mm	DPST	IP65 - Dust Tight, Water Resistant	125 V	cURus, ENEC	6000 Cycles	10000 Steps	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In
Switch Components RA4-2A-DC-2-RL	Red	No Marking	-25 °C	85 °C	14 V	Round - Illuminated	20 A	On-Off	20.2 mm	DPST	IP65 - Dust Tight, Water Resistant		cURus, ENEC	6000 Cycles	10000 Steps	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	14 VDC	LED, Red
Switch Components RA4-2A-DC-2-GL	Green	No Marking	-25 °C	85 °C	14 V	Round - Illuminated	20 A	On-Off	20.2 mm	DPST	IP65 - Dust Tight, Water Resistant		cURus, ENEC	6000 Cycles	10000 Steps	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	14 VDC	Green, LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.61

General part information

Rocker Switch DPST 20A (DC) Panel Mount, Snap-In
