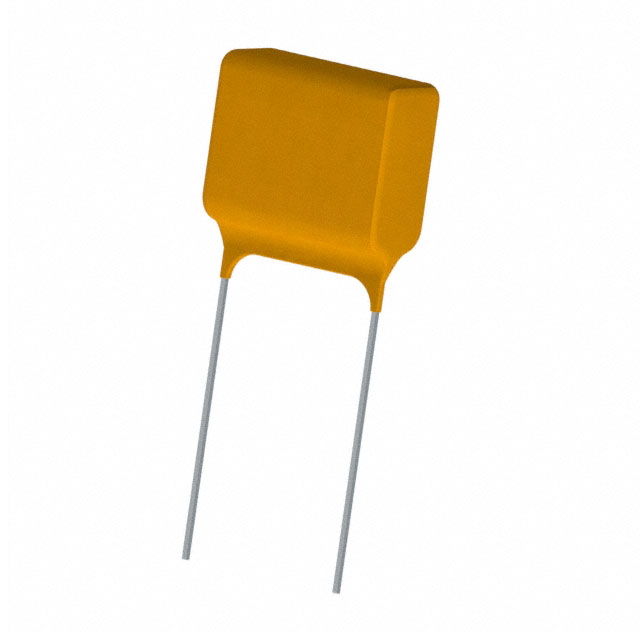

7565B223K802LE

Active

Knowles Johanson Manufacturing

CAP CER 0.022UF 8KV X7R RAD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 0.022UF 8KV X7R RAD

Technical Specifications

Parameters and characteristics for this part

Part	Lead Style	Temperature Coefficient	Features	Capacitance	Voltage - Rated	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Applications	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Knowles Johanson Manufacturing 7565B223K602LE	Straight	X7R	High Voltage	0.022 µF	6000 V	6 kV	24.76 mm	0.975 "	19.8 mm	0.78 in	General Purpose	Through Hole	10 %	-55 °C	125 °C	Radial	22.86 mm	0.402 in	0.9 "	10.2 mm
Knowles Johanson Manufacturing 7565B223K802LE	Straight	X7R	High Voltage	0.022 µF	8 kV	8 kV	24.76 mm	0.975 "	19.8 mm	0.78 in	General Purpose	Through Hole	10 %	-55 °C	125 °C	Radial	22.86 mm	0.402 in	0.9 "	10.2 mm
Knowles Johanson Manufacturing 7565B472K103LE	Straight	X7R	High Voltage	4700 pF	10 kV	10 kV	24.76 mm	0.975 "	19.8 mm	0.78 in	General Purpose	Through Hole	10 %	-55 °C	125 °C	Radial	22.86 mm	0.402 in	0.9 "	10.2 mm
Knowles Johanson Manufacturing 7565B333K602LE	Straight	X7R	High Voltage	0.033 çF	6000 V	6 kV	24.76 mm	0.975 "	19.8 mm	0.78 in	General Purpose	Through Hole	10 %	-55 °C	125 °C	Radial	22.86 mm	0.402 in	0.9 "	10.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.022 µF ±10% 8000V (8kV) Ceramic Capacitor X7R Radial
